Product Details

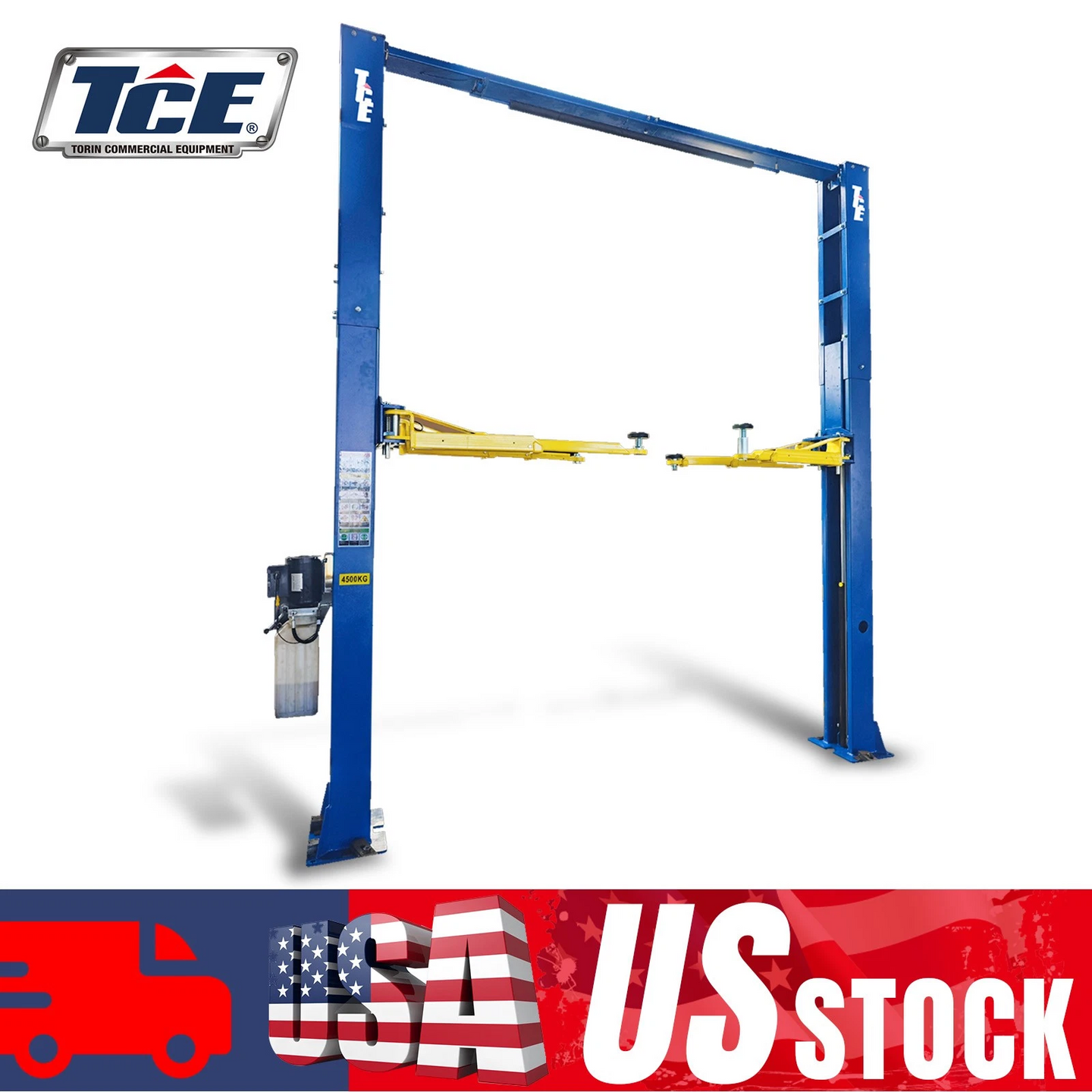

10,000 LBs 2 Post Car Lift
- Special Note: Please leave phone number for delivery contact when filling personal info at checkout
-
Special Note: Please inspect your package(s) upon delivery to ensure they are correct. IF YOU FIND ANY PRODUCT DAMAGE, PLEASE MARK IT CLEARLY ON THE DRIVER'S RECEIPT AND TAKE PHOTOS FOR YOUR RECORDS. Please accept the package(s) with minor damages like scratches, dents or broken packages. The package(s) were shipped in new condition and checked by the driver at the warehouse. We can file a claim with the carrier for repair costs if a damage is documented upon delivery. Please be sure to contact us within 30 days for any missing or replacement parts.
- 2-Year Warranty: Included (a $399 value)

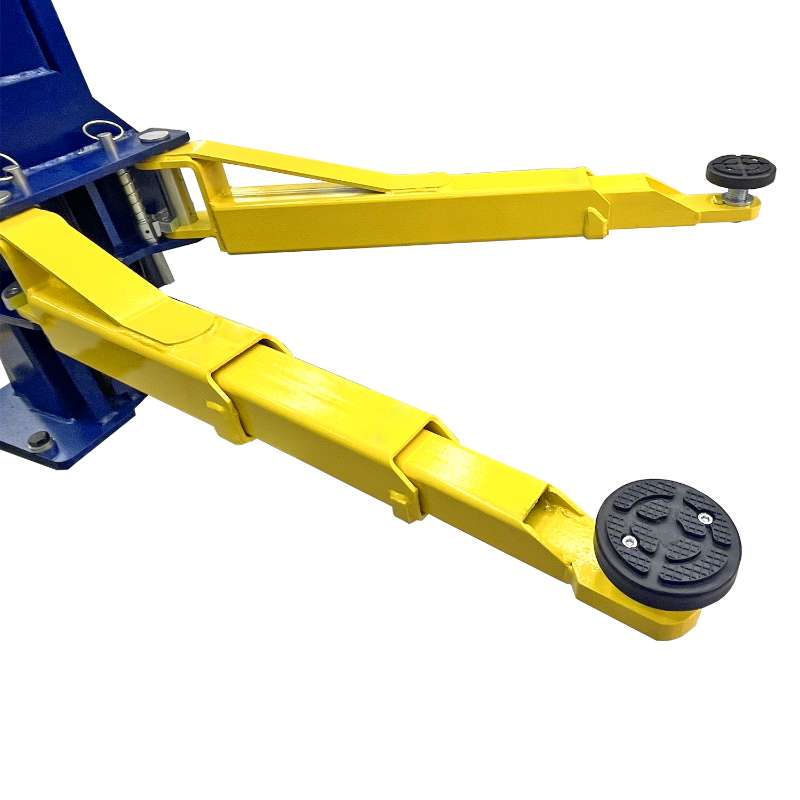

- Versatile Arm Assembly: Symmetrical with Adjustable Screw Pads
- Certified Lift Structure: CE Certified, 115% Dynamic Load Capacity, 150% Static Load Capacity
- Robust Construction: Robot welded structure with a durable powder-coated finish
Overhead
-
Overall height: 151.2in;Overall width: 3411mm(134.3in)
Maximum lift height with truck adapters: 2015mm (79.3in)
Maximum lift height without truck adapters: 1915mm (75.4in)
Minimum height of arm top: 99mm(3.9in) -
Column steel thickness: 5mm(0.2in);Carriage steel thickness: 6mm(0.23in)
Carriage yoke thickness:14mm(0.55in);Arm steel thickness: 6mm(0.23in)
Base plate steel thickness:14mm(0.55in)
Driving mode: dual hydraulic cylinders, chain drive -
Voltage: 110V 60Hz; Lifting capacity: 4.5t (10000LB)
Carriage to carriage width (drive-through clearance): 2250mm (88.58in)
Column to column width: 2780mm (109.45in)
Column cross section: 280mm x 180mm (11in x 7in) -
Time to full rise:50 sec; Motor: 3 HP
Shipping weight:1544 LB
Shipping package size: L x W x H (109in x 24in x 44in)
Floorplate
- Lifting capacit 10000LB
Overall height 112.6in
Overall width 134.3in - Maximum lift height with truck adapters 79.3in
Maximum lift height without truck adapters 75.4in
Minimum height of arm top 3.9in - Shipping weight 1,455 LB
Shipping package size 115in x 19in x 40in
Motor 3 HP
Electric 220v Floorplate
- Ratedload:10000Lb; Liftingheight:75.3in ; Rising time Sec:55; Descending time sec: >45; Motor power kw:2.2
- Passage width:108.2 in
Machine width:130.6in
Machine height:111.4 in
Motor:220V/60Hz
Machine weight: （1378/1411）lb - Designed based on the international standard, meeting the demand of the garage and workshop.
- Dual hydraulic cylinders drive, stable lifting and lowering.
Electromagnetic full-scope safety lock.
Lowering electrically, safe and simple in operation. - Adopt two steel cables for equalization, force two carriages to move synchronously, and effectively prevent the vehicle from tilting.
- Lowest height of lifting pad is 104mm, good for repairing low chassis or low profile car.
Overhead-Light style-220V
- Lifting Capacity: 10000lbs.(4.5 Ton)
Max. Lifting Height: 76.77"/1950mm
Min. Height: 4.25"/110mm - Height Overall: 150.79"/3830mm
Width Overall: 134.65"/3420mm
Passable width: 102.76"/2610mm
Inside Column: 102.76"/2610mm
Chain length:90.94"/2310mm(121 links)
Chain width：1.18"/30mm
Diameter dimension of the steel cable wheel ：100mm - Gross weight: 1437.4 in/ 652 kg
Lifting time: 45-50s
Motor: 220VAC/60HZ/2.2KW
Net Weight: 640KG - 220V Two Post Car Lift 10,000 LBS Overhead Single-Sided Unlocking Auto Hoist Truck Lift
Top hydraulic system, 220 V ; 10,000 lbs Capacity, Driven by dual hydraulic cylinders. Auto Car Lift is CE certified. Standardized for 115% dynamic load capacity and tested for 150% static load capacity - Single Unlock, Manual safety locking system, Mechanical locking system; Safety latches in each column. Chain type lifting system. Steel wire rope equalizing cables
- Multi-voltage power supply is available forelectrical requirements. Adiustable lift pads and adapters
- Convenient Operation and Maintenance: User-friendly controls of this clear floor car lift uses the "UP" button on the motor, coupled with manual lowering via a lever, simplifying operations,which requires occasional lubrication and inspections for maintenance.
- Longevity and Reliability: Constructed with high-quality materials and upgraded components like heavy-duty cables and pulleys, ensuring durability and reducing stress during synchronization, thereby extending the equipment's lifespan.
We take pride in our quality materials and craftsmanship. Our commitment to excellence is backed by an industry-leading 3-year warranty for all parts, valued at $499. We welcome your feedback to continually improve our products and services.
Warehouse Pickup Location:
We have warehouse locations in CA, TX, and NJ. Please contact us in advance to arrange the best pickup warehouse for you.
video: https://www.youtube.com/watch?v=Zih5RuUmqcE
Enjoy free shipping to commercial addresses in business zones with forklift access or nearby freight terminals within 500 miles from Ontario, CA 91761. Please note that residential addresses incur a $60 additional charge, and liftgate service is unavailable due to package length. We recommend using your own unloading equipment, such as a forklift, bobcat, cherrypicker, or flatbed truck (renting a forklift is discouraged). Additional freight charges may apply to remote or high-cost delivery areas.
Free shipping is extended to commercial addresses within designated business zones in the contiguous 48 states, provided there is access to a forklift or proximity to a freight terminal. Shipments to residential addresses will incur an additional fee of $60. It is important to note that liftgate services cannot be provided due to the considerable length of the car lift package. To facilitate the unloading process, we kindly request that customers arrange for their own unloading equipment, such as a forklift, bobcat, cherrypicker, or flatbed truck. We strongly discourage the rental of forklifts for this purpose. It is imperative to be aware that additional freight charges may be applicable for deliveries to remote areas and destinations with high associated delivery costs.
- CE Certified Lift Structure and Hydraulic System: Compliant with CE certification standards for lift structure and hydraulic system.
- Third-Party Tested: Independently tested for a dynamic load capacity of 115% and a static load capacity of 150%.
- Durable Hydraulic System: Designed for long-lasting performance and durability.
- Easy Operation and Maintenance: User-friendly and straightforward to operate and maintain.
- Double Point Safety Lock Release: Enhanced safety features with a dual-point lock release mechanism.
- Double Seal Rings: Incorporates double seal rings to protect PU material.
- Carriage Material Q355 (ASTM A572): Utilizes stronger Q355 steel (ASTM A572) for the carriage, surpassing normal Q235 steel.
- User-Friendly Controls: Lifting operation using the "UP" button on the motor and manual lowering via a lever.
- Overload Prevention: Equipped with a relief valve in the power pump to prevent overloading.
- Automatic Arm Lock Restraints: Ensures safety during operation with automatic arm lock restraints.
- Door Guards Protection: Includes rubber protection for door guards.
- Cylinder Stroke Protection: Features an up-limit switch to safeguard cylinder working stroke within a safe range.
- Heavy-Duty Cable and Pulley: Utilizes a robust 3/8" diameter cable and 5" pulley to reduce stress during synchronization and extend cable life.
- Upgraded Floor Plate: Enhanced with beveled diamond plate steel (5/32") and a supporting bracket.
- Self-Lubricating Nylon Slider: Utilizes ultra-high molecular self-lubricating nylon sliders for smooth carriage movement.
