Product Details

Description

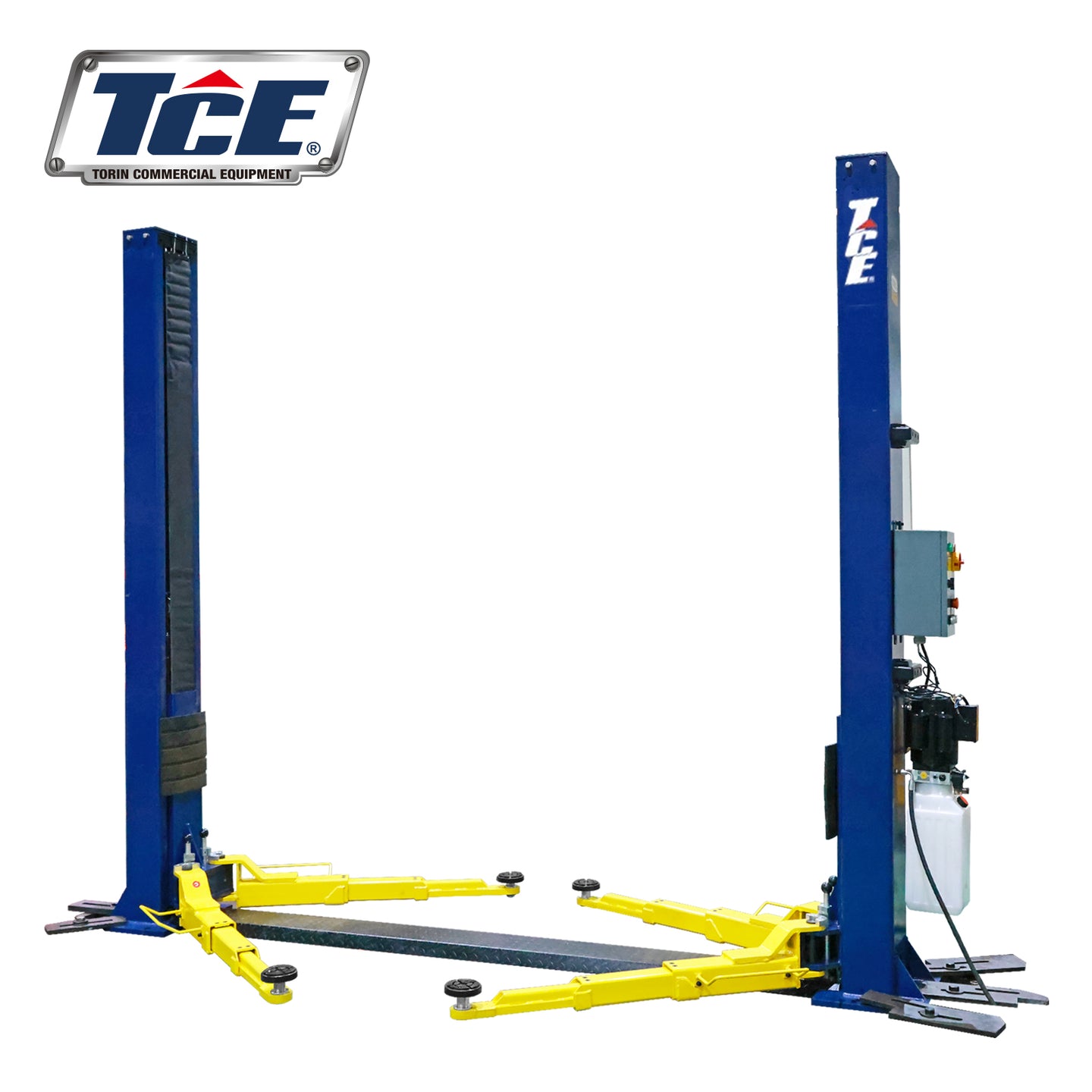

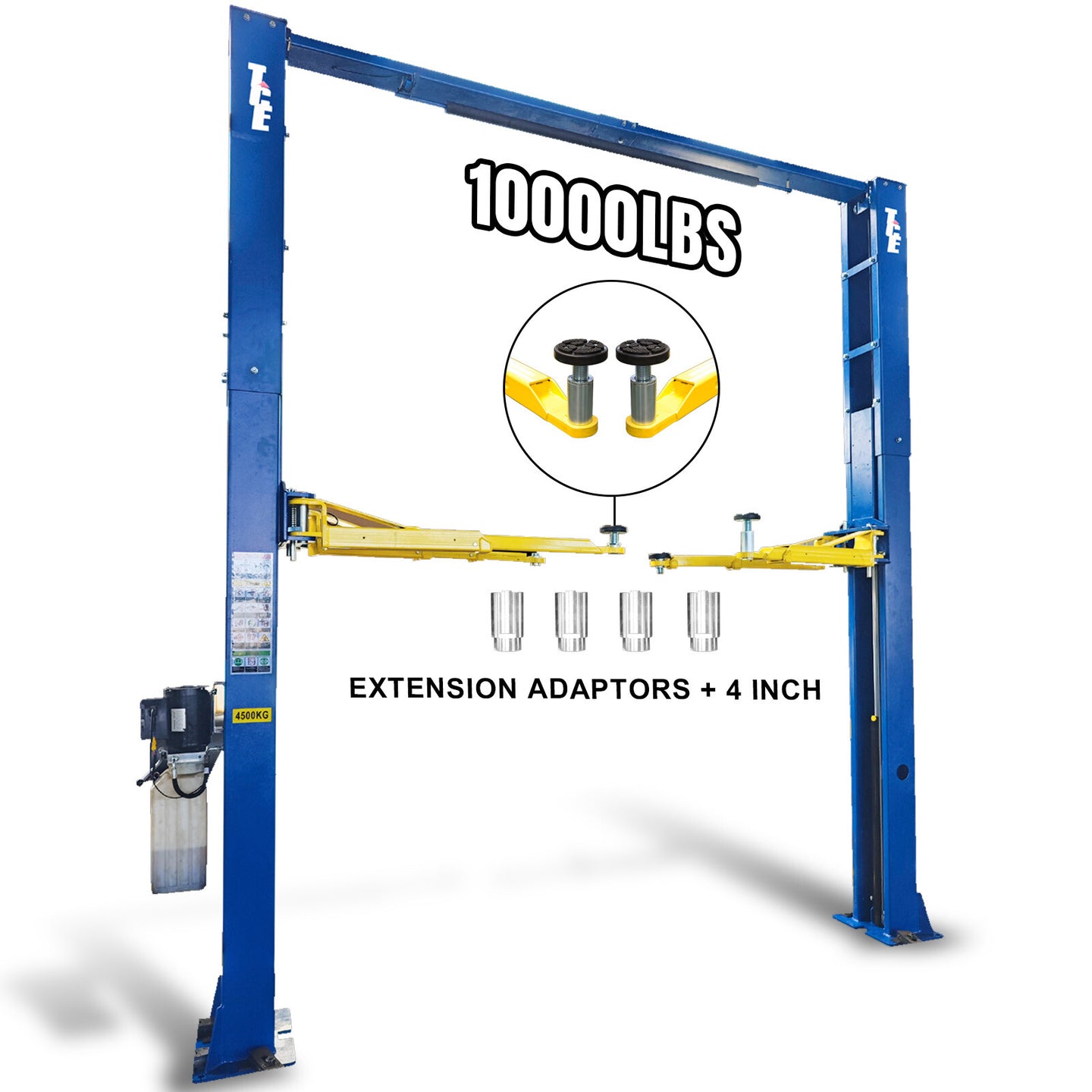

10,000 LBs 2 Post Car Lift

Special Note: Please note this link only for pick up at Our Warehouse, you need pick it up by yourself, please make sure that you have the capacity to unload, upload, and transport.
We have warehouse locations in CA, TX, and NJ. Please contact us in advance to arrange the best pickup warehouse for you.
Special Note: Please inspect your package(s) upon delivery to ensure they are correct. IF YOU FIND ANY PRODUCT DAMAGE, PLEASE MARK IT CLEARLY ON THE DRIVER'S RECEIPT AND TAKE PHOTOS FOR YOUR RECORDS. Please accept the package(s) with minor damages like scratches, dents or broken packages. The package(s) were shipped in new condition and checked by the driver at the warehouse. We can file a claim with the carrier for repair costs if a damage is documented upon delivery. Please be sure to contact us within 30 days for any missing or replacement parts.
2-Year Warranty: Included (a $399 value)

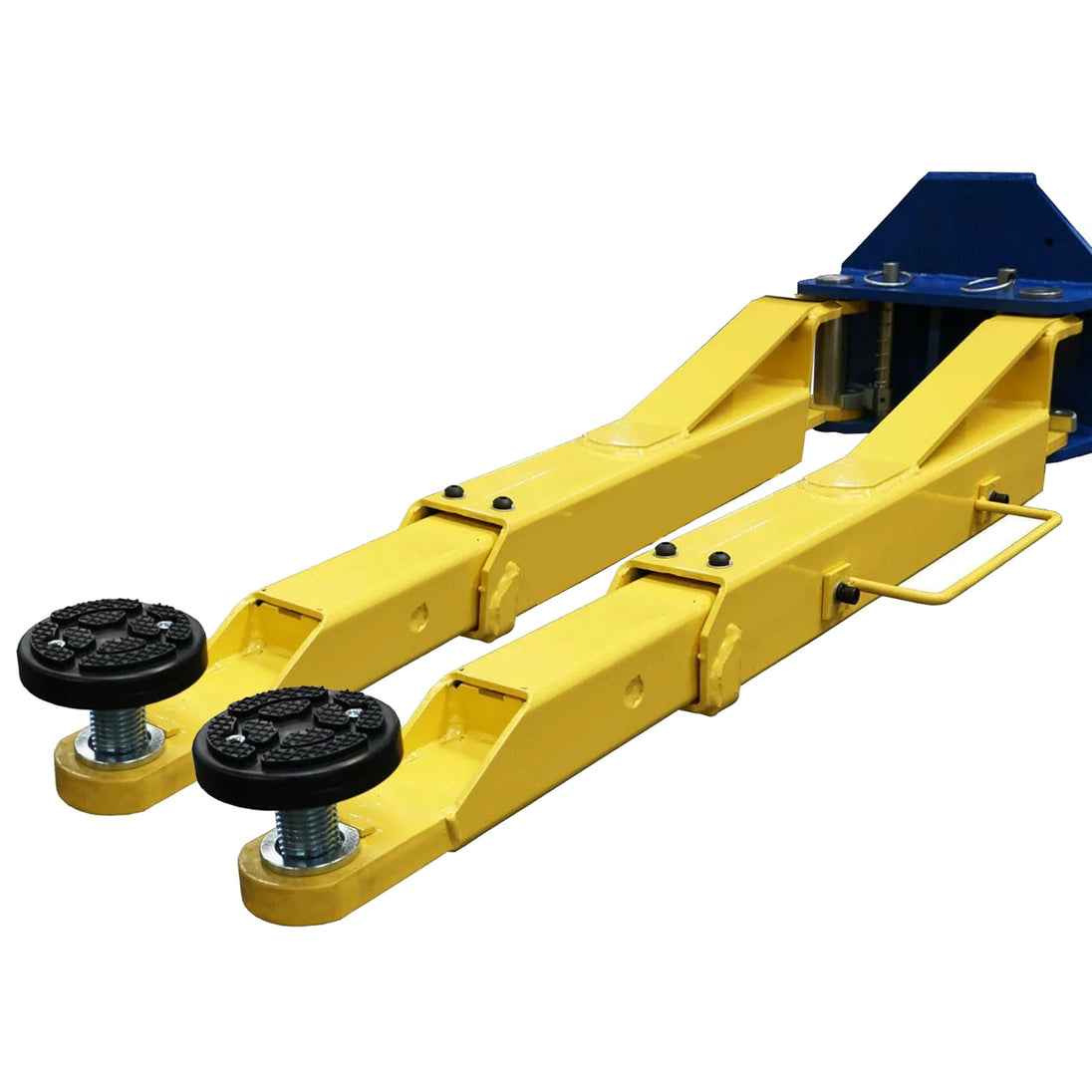

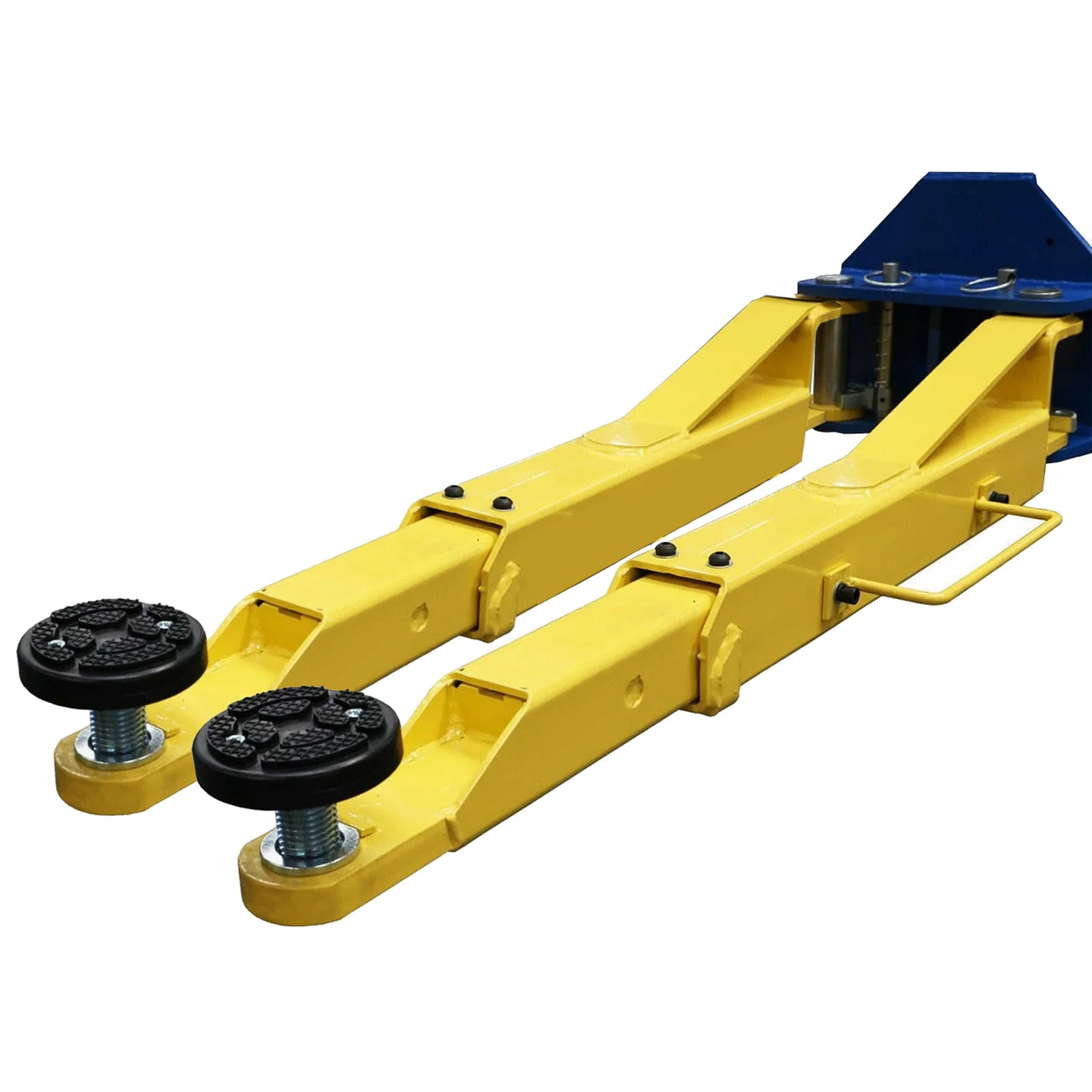

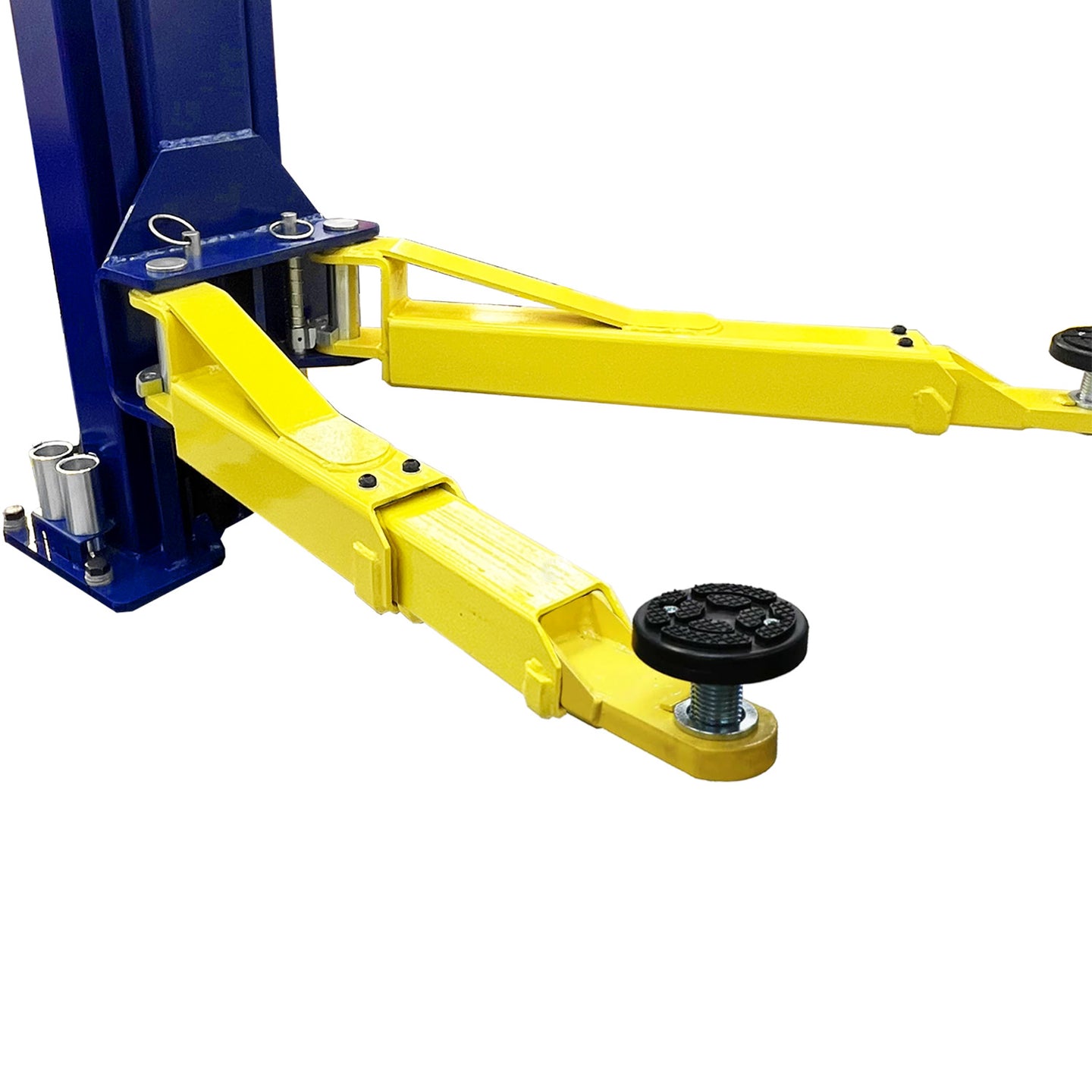

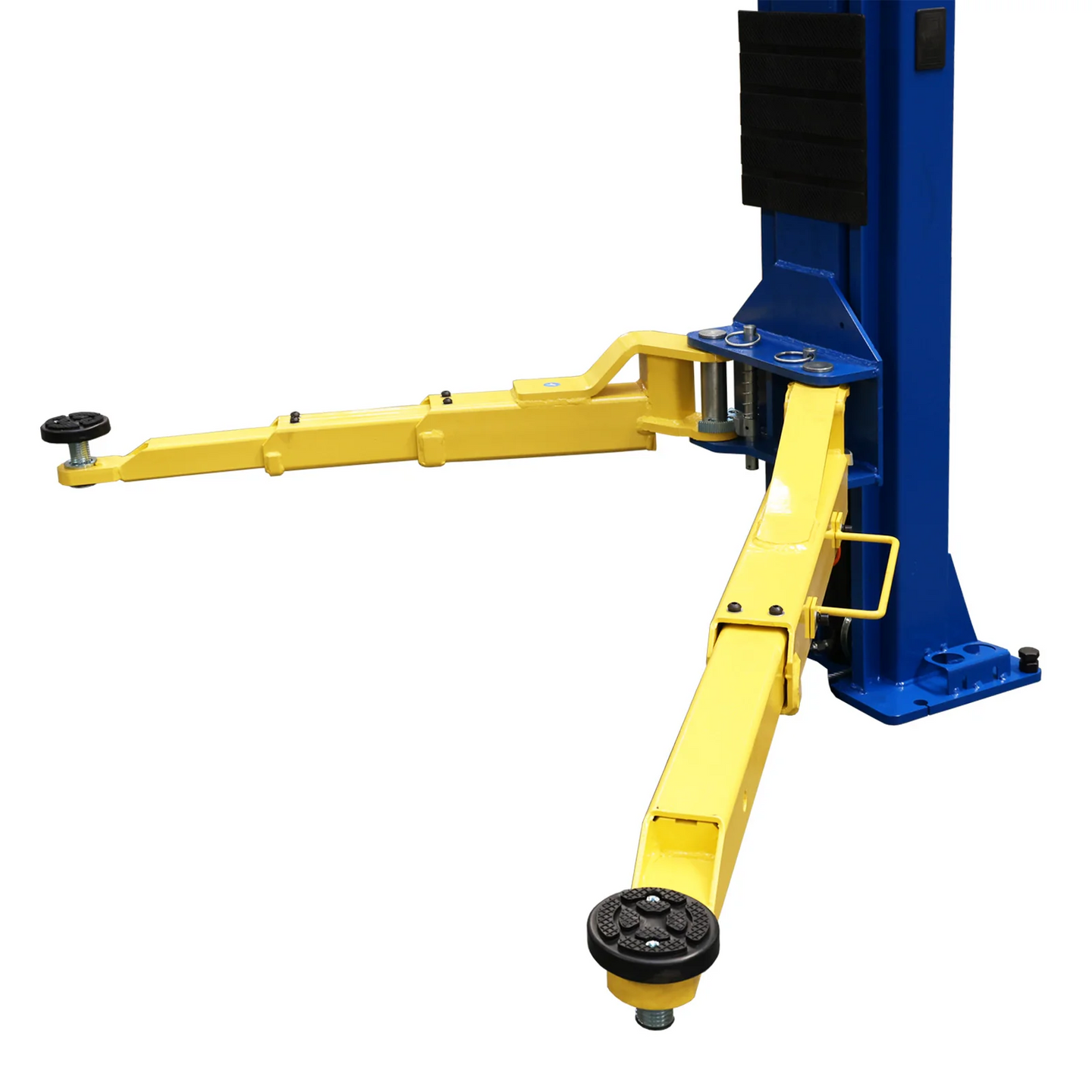

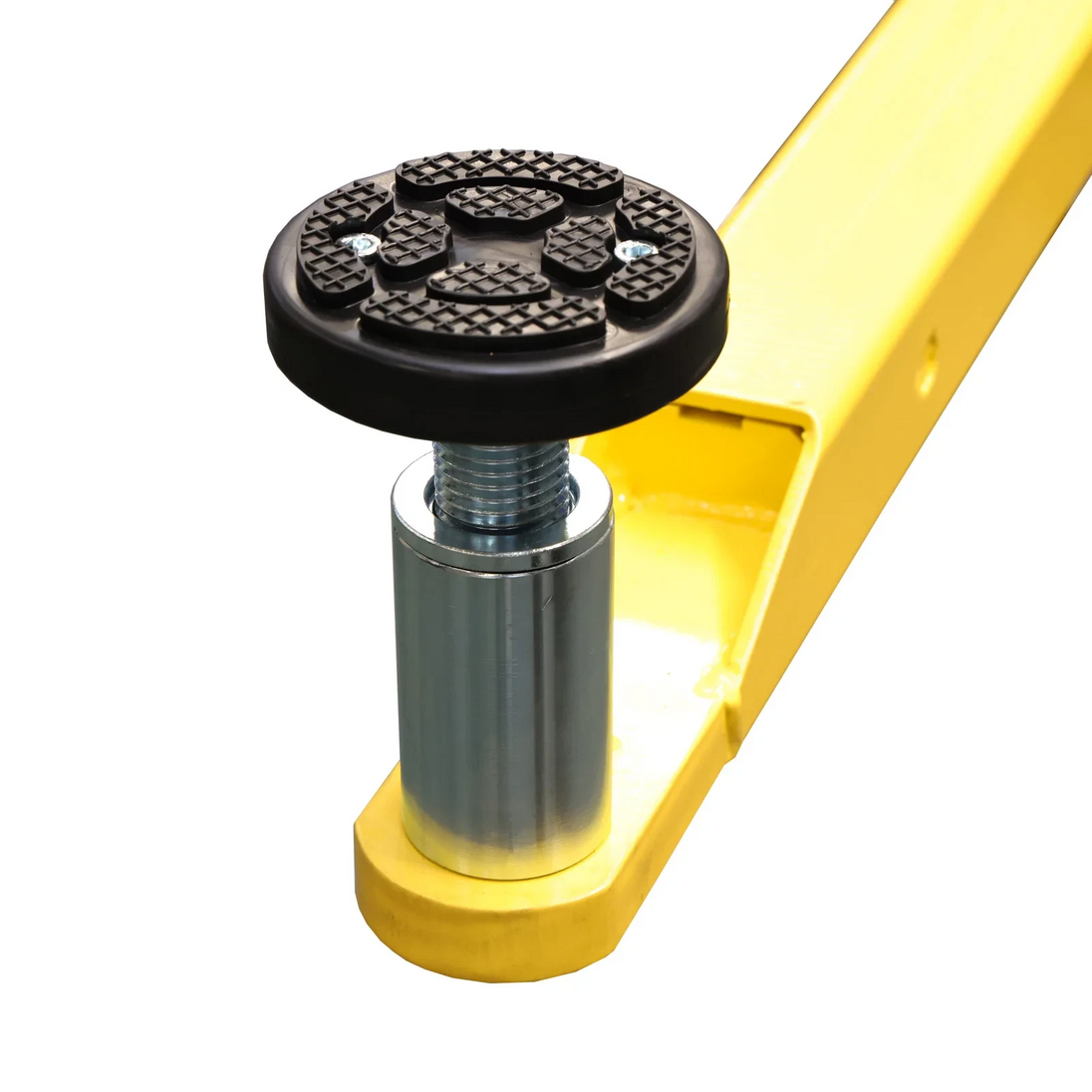

Versatile Arm Assembly: Symmetrical with Adjustable Screw Pads
Certified Lift Structure: CE Certified, 115% Dynamic Load Capacity, 150% Static Load Capacity
Robust Construction: Robot welded structure with a durable powder-coated finish

Overhead-PICK UP: This link does not offer free shipping. You need to pick it up from our warehouses or pay the freight charge $500

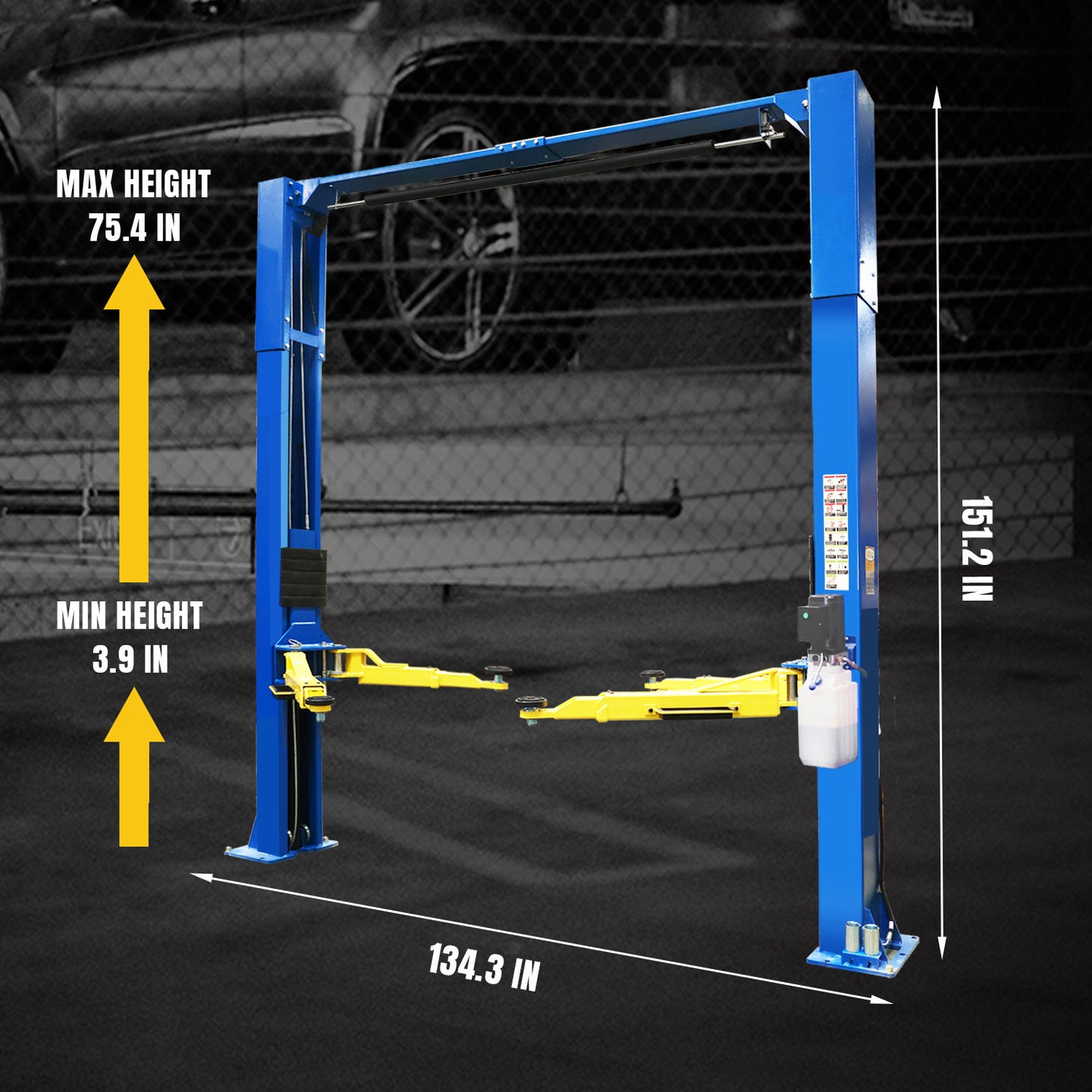

Overall height: 151.2in;Overall width: 3411mm(134.3in)
Maximum lift height with truck adapters: 2015mm (79.3in)
Maximum lift height without truck adapters: 1915mm (75.4in)
Minimum height of arm top: 99mm(3.9in)
Column steel thickness: 5mm(0.2in);Carriage steel thickness: 6mm(0.23in)
Carriage yoke thickness:14mm(0.55in);Arm steel thickness: 6mm(0.23in)
Base plate steel thickness:14mm(0.55in)
Driving mode: dual hydraulic cylinders, chain drive
Voltage: 110V 60Hz; Lifting capacity: 4.5t (10000LB)
Carriage to carriage width (drive-through clearance): 2250mm (88.58in)
Column to column width: 2780mm (109.45in)
Column cross section: 280mm x 180mm (11in x 7in)
Time to full rise:50 sec; Motor: 3 HP
Shipping weight:1544 LB

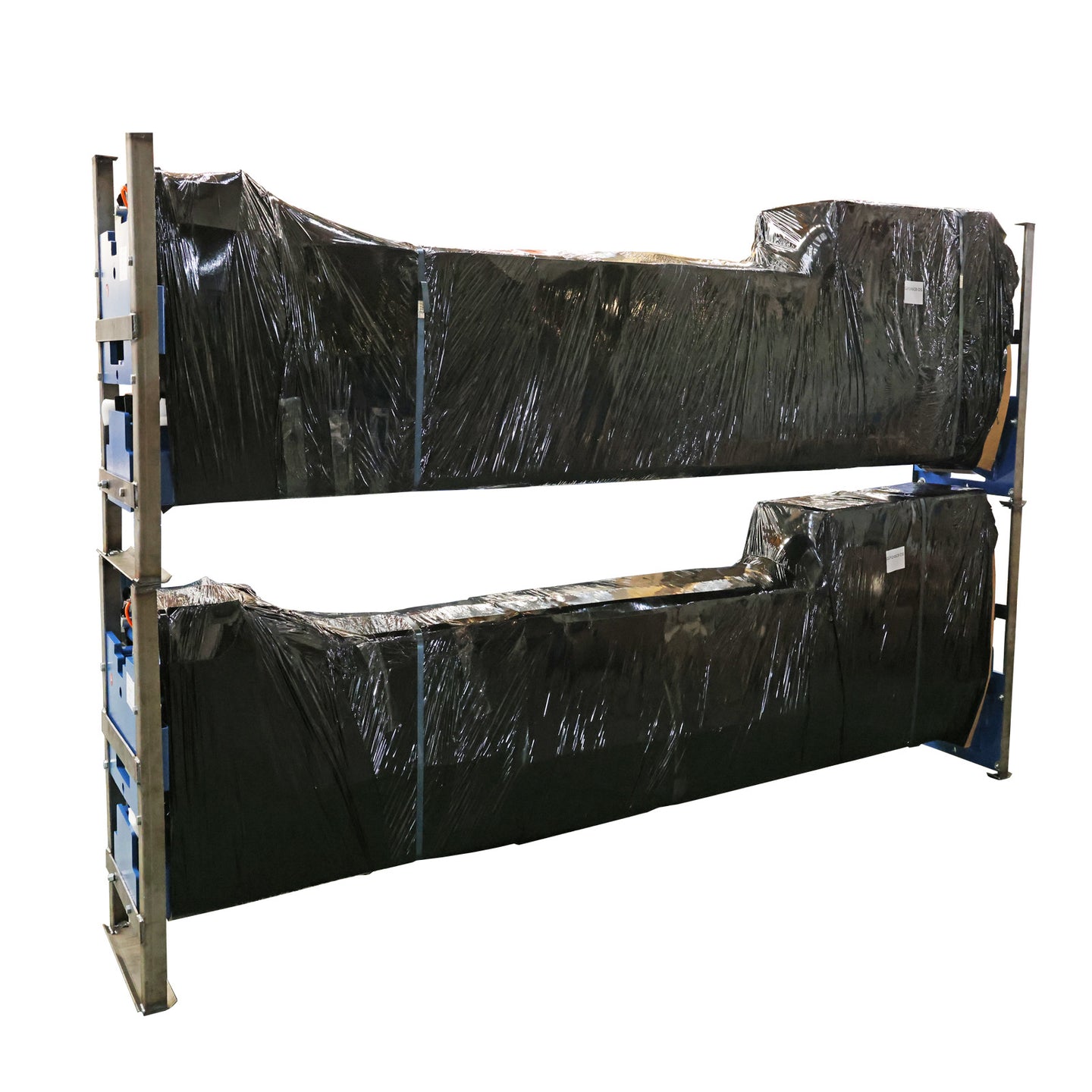

Shipping package size: L x W x H (109in x 24in x 44in)

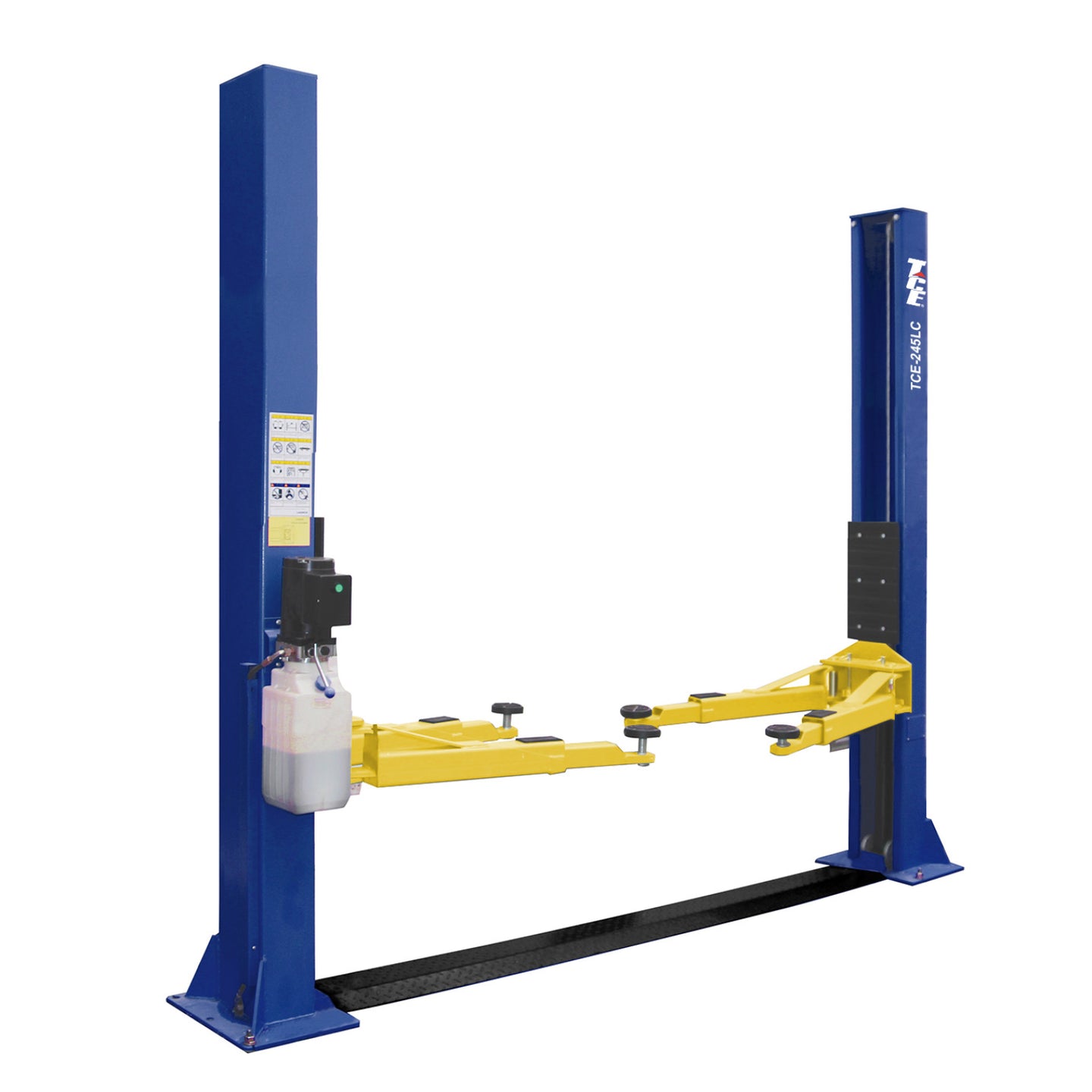

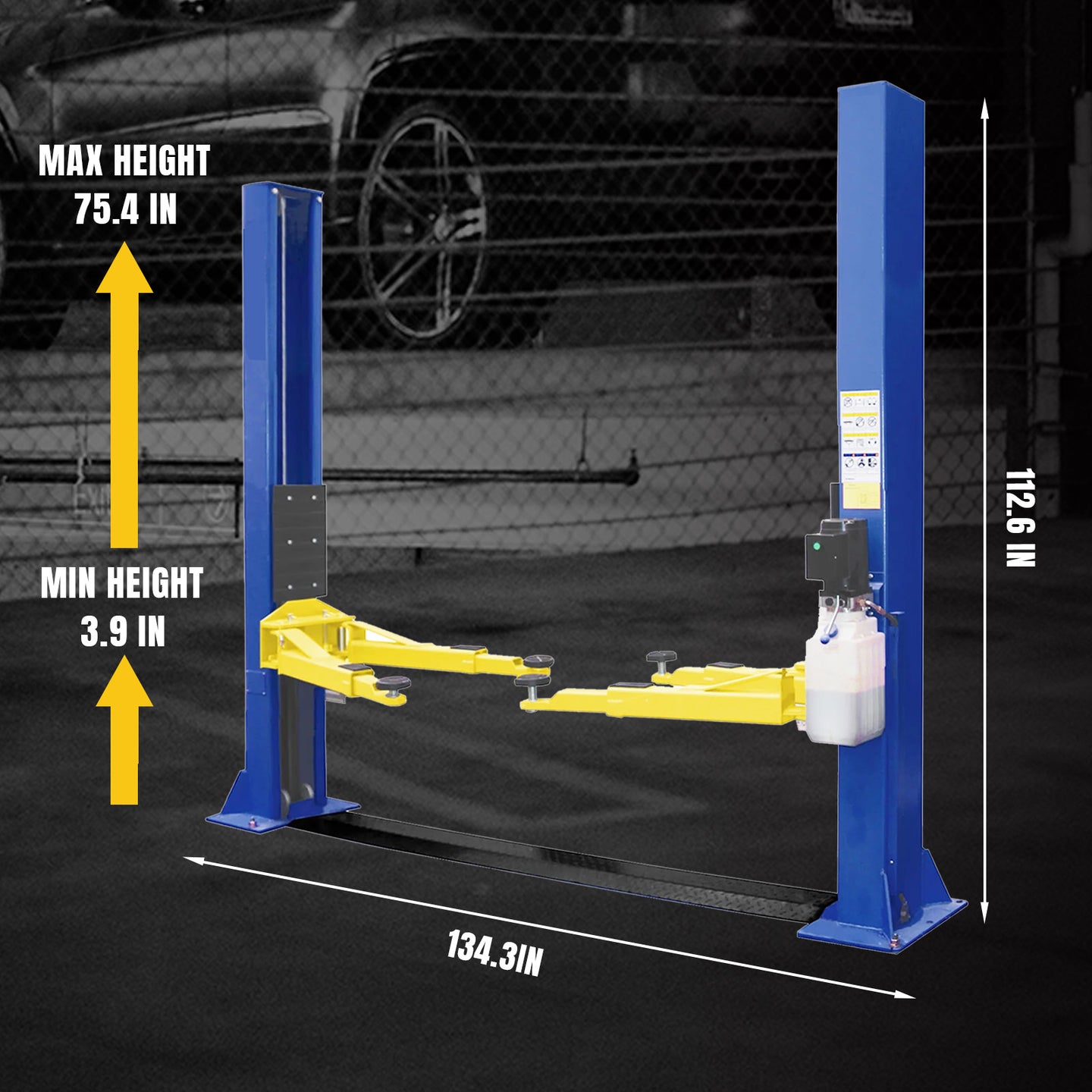

Floorplate-PICK UP: This link does not offer free shipping. You need to pick it up from our warehouses or pay the freight charge $500

Lifting capacity: 10000LB
Overall height: 112.6in
Overall width: 134.3in
Maximum lift height with truck adapters: 79.3in
Maximum lift height without truck adapters: 75.4in
Minimum height of arm top: 3.9in
Shipping weight: 1,455 LB
Shipping package size: 115in x 19in x 40in
Motor: 3 HP

Electric 220v Floorplate-PICK UP: This link does not offer free shipping. You need to pick it up from our warehouses or pay the freight charge $500

Rated load: 10000Lb; Lifting height: 75.3in; Rising time Sec: 55; Descending time sec: >45; Motor power kw: 2.2
Passage width: 108.2 in
Machine width: 130.6in
Machine height: 111.4 in
Motor: 220V/60Hz
Machine weight: (1378/1411) lb
Designed based on the international standard, meeting the demand of the garage and workshop.
Dual hydraulic cylinders drive, stable lifting and lowering.
Electromagnetic full-scope safety lock.
Lowering electrically, safe and simple in operation.
Adopt two steel cables for equalization, force two carriages to move synchronously, and effectively prevent the vehicle from tilting.
Lowest height of lifting pad is 104mm, good for repairing low chassis or low profile car.

Overhead-Light style-220V-PICK UP: This link does not offer free shipping. You need to pick it up from our warehouses or pay the freight charge $500

Lifting Capacity: 10000lbs.(4.5 Ton)
Max. Lifting Height: 76.77"/1950mm
Min. Height: 4.25"/110mm
Height Overall: 150.79"/3830mm
Width Overall: 134.65"/3420mm
Passable width: 102.76"/2610mm
Inside Column: 102.76"/2610mm
Chain length: 90.94"/2310mm(121 links)
Chain width: 1.18"/30mm
Diameter dimension of the steel cable wheel: 100mm
Gross weight: 1437.4 in/ 652 kg
Lifting time: 45-50s
Motor: 220VAC/60HZ/2.2KW
Net Weight: 640KG
220V Two Post Car Lift 10,000 LBS Overhead Single-Sided Unlocking Auto Hoist Truck Lift
Top hydraulic system, 220 V ; 10,000 lbs Capacity, Driven by dual hydraulic cylinders. Auto Car Lift is CE certified. Standardized for 115% dynamic load capacity and tested for 150% static load capacity
Single Unlock, Manual safety locking system, Mechanical locking system; Safety latches in each column. Chain type lifting system. Steel wire rope equalizing cables
Multi-voltage power supply is available for electrical requirements. Adjustable lift pads and adapters
Convenient Operation and Maintenance: User-friendly controls of this clear floor car lift uses the "UP" button on the motor, coupled with manual lowering via a lever, simplifying operations, which requires occasional lubrication and inspections for maintenance.
Longevity and Reliability: Constructed with high-quality materials and upgraded components like heavy-duty cables and pulleys, ensuring durability and reducing stress during synchronization, thereby extending the equipment's lifespan.

We take pride in our quality materials and craftsmanship. Our commitment to excellence is backed by an industry-leading 3-year warranty for all parts, valued at $499. We welcome your feedback to continually improve our products and services.

Warehouse Pickup Location:

We have warehouse locations in CA, TX, and NJ. Please contact us in advance to arrange the best pickup warehouse for you.

Video: https://www.youtube.com/watch?v=Zih5RuUmqcE

CE Certified Lift Structure and Hydraulic System: Compliant with CE certification standards for lift structure and hydraulic system.
Third-Party Tested: Independently tested for a dynamic load capacity of 115% and a static load capacity of 150%.

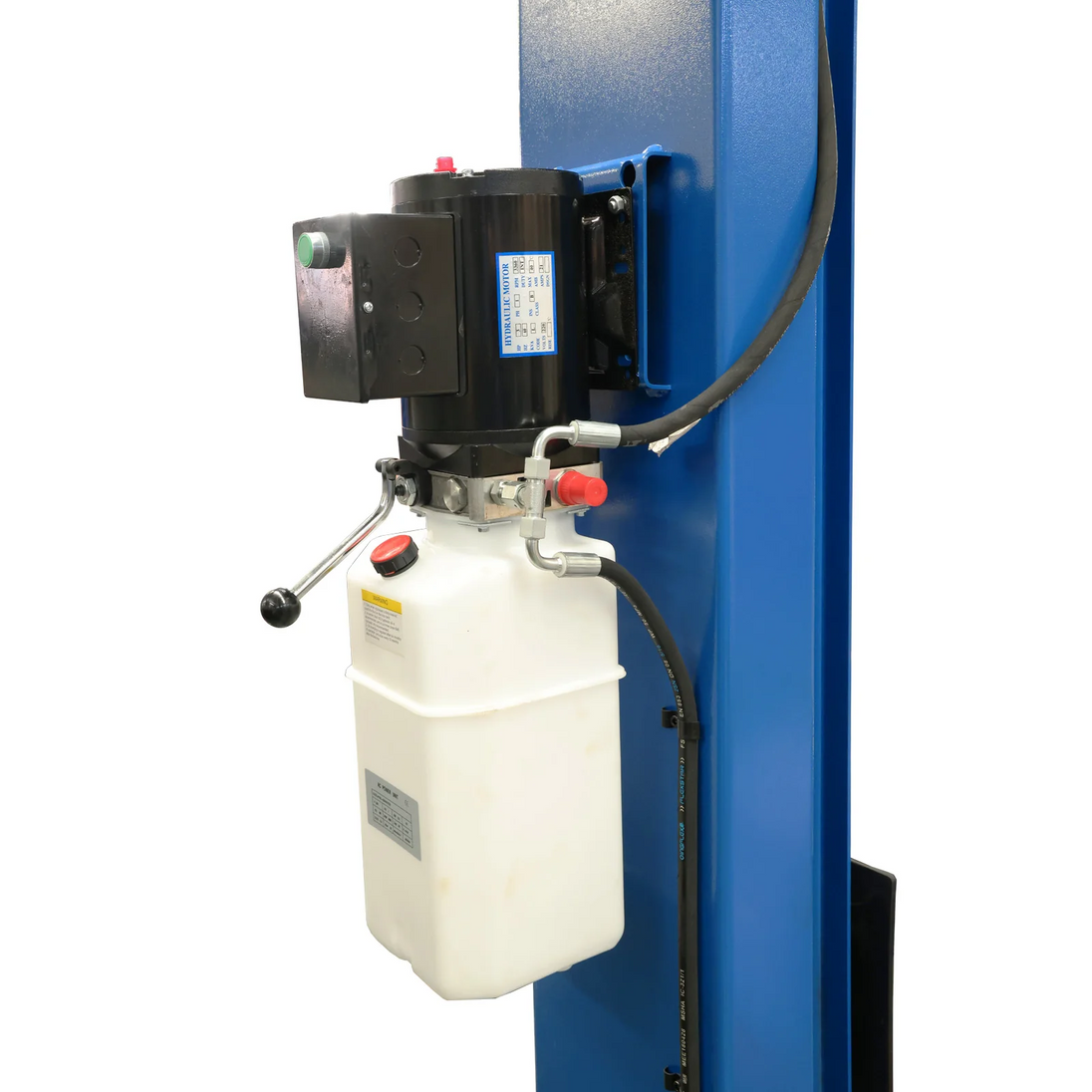

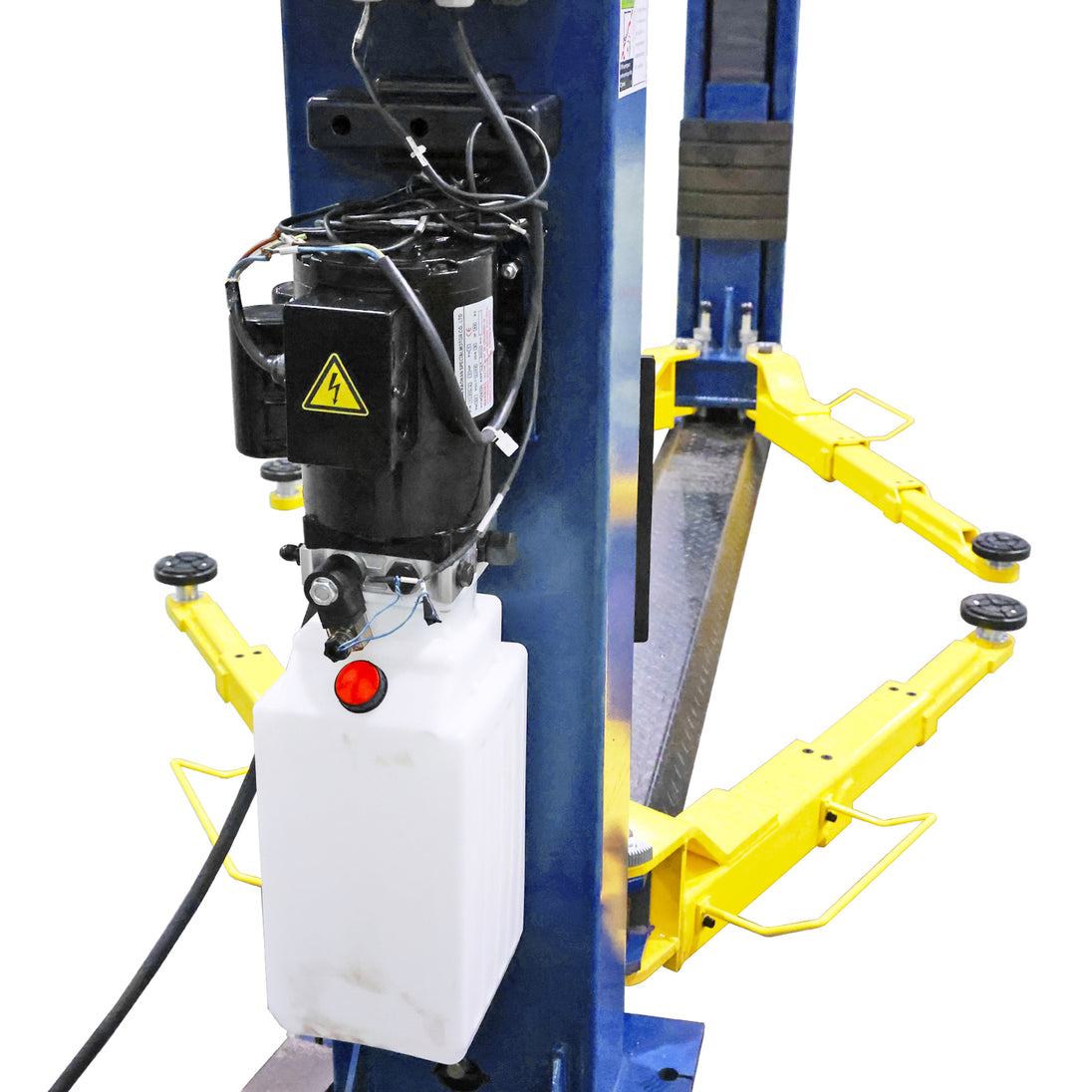

Durable Hydraulic System: Designed for long-lasting performance and durability.
Easy Operation and Maintenance: User-friendly and straightforward to operate and maintain.
Double Point Safety Lock Release: Enhanced safety features with a dual-point lock release mechanism.
Double Seal Rings: Incorporates double seal rings to protect PU material.
Carriage Material Q355 (ASTM A572): Utilizes stronger Q355 steel (ASTM A572) for the carriage, surpassing normal Q235 steel.

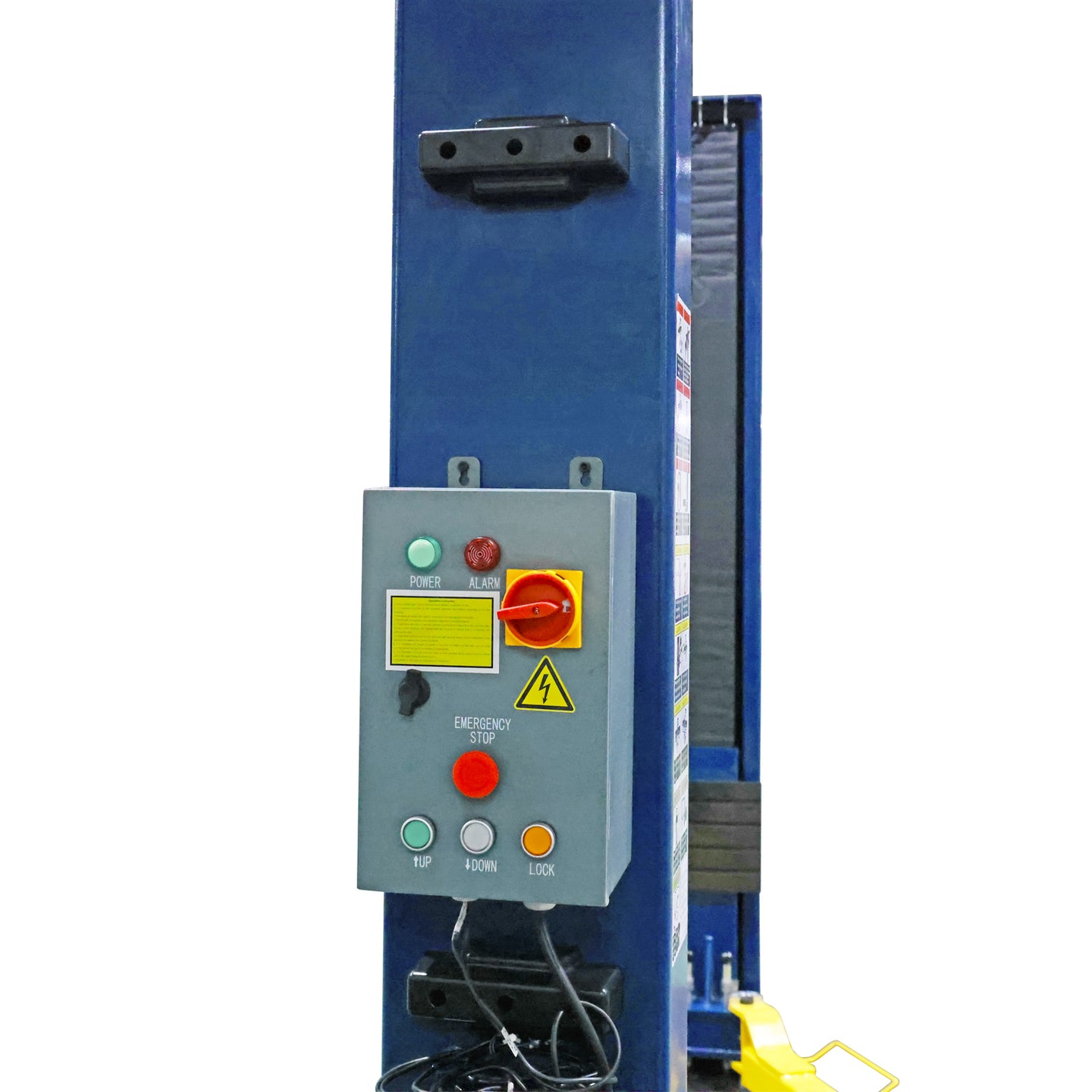

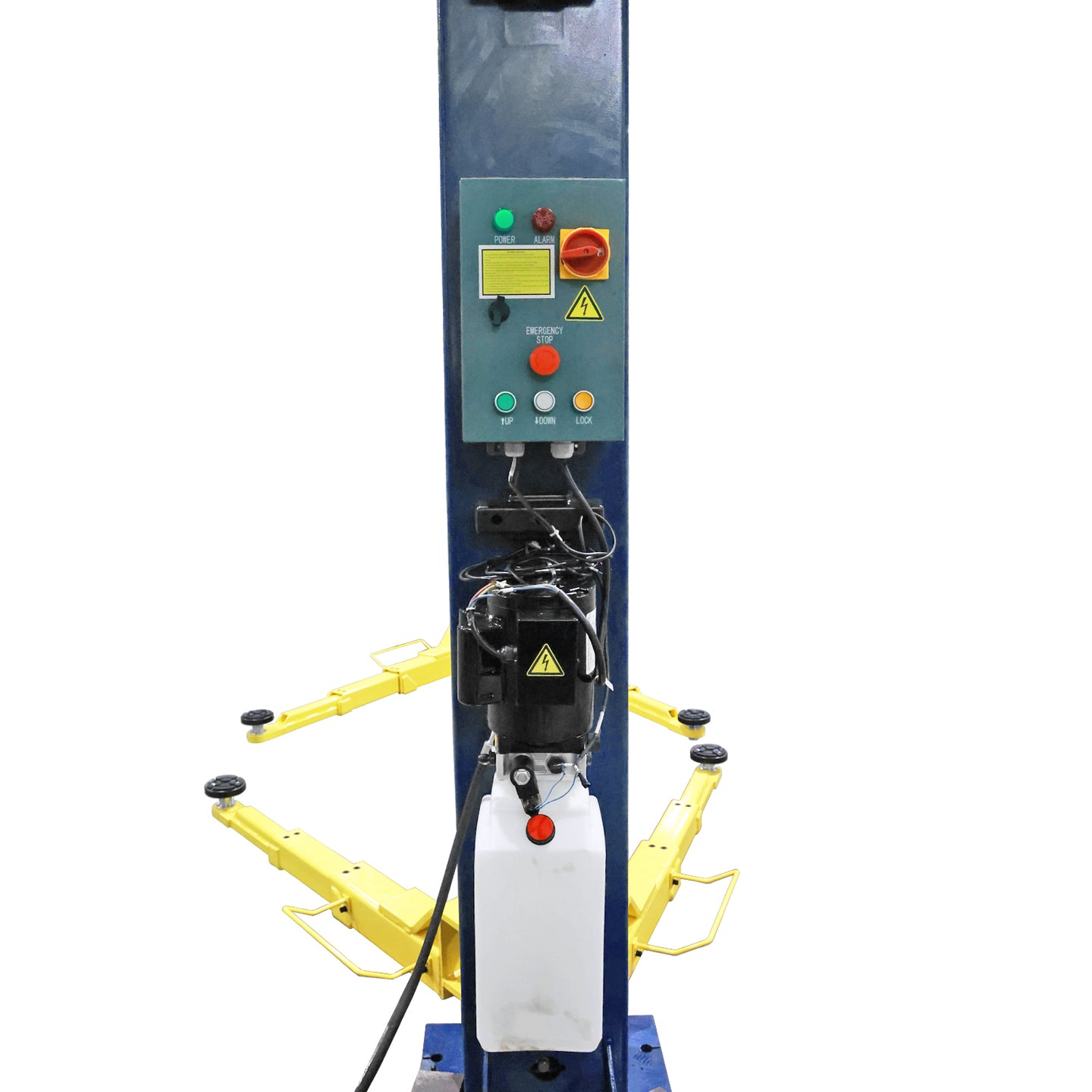

User-Friendly Controls: Lifting operation using the "UP" button on the motor and manual lowering via a lever.
Overload Prevention: Equipped with a relief valve in the power pump to prevent overloading.

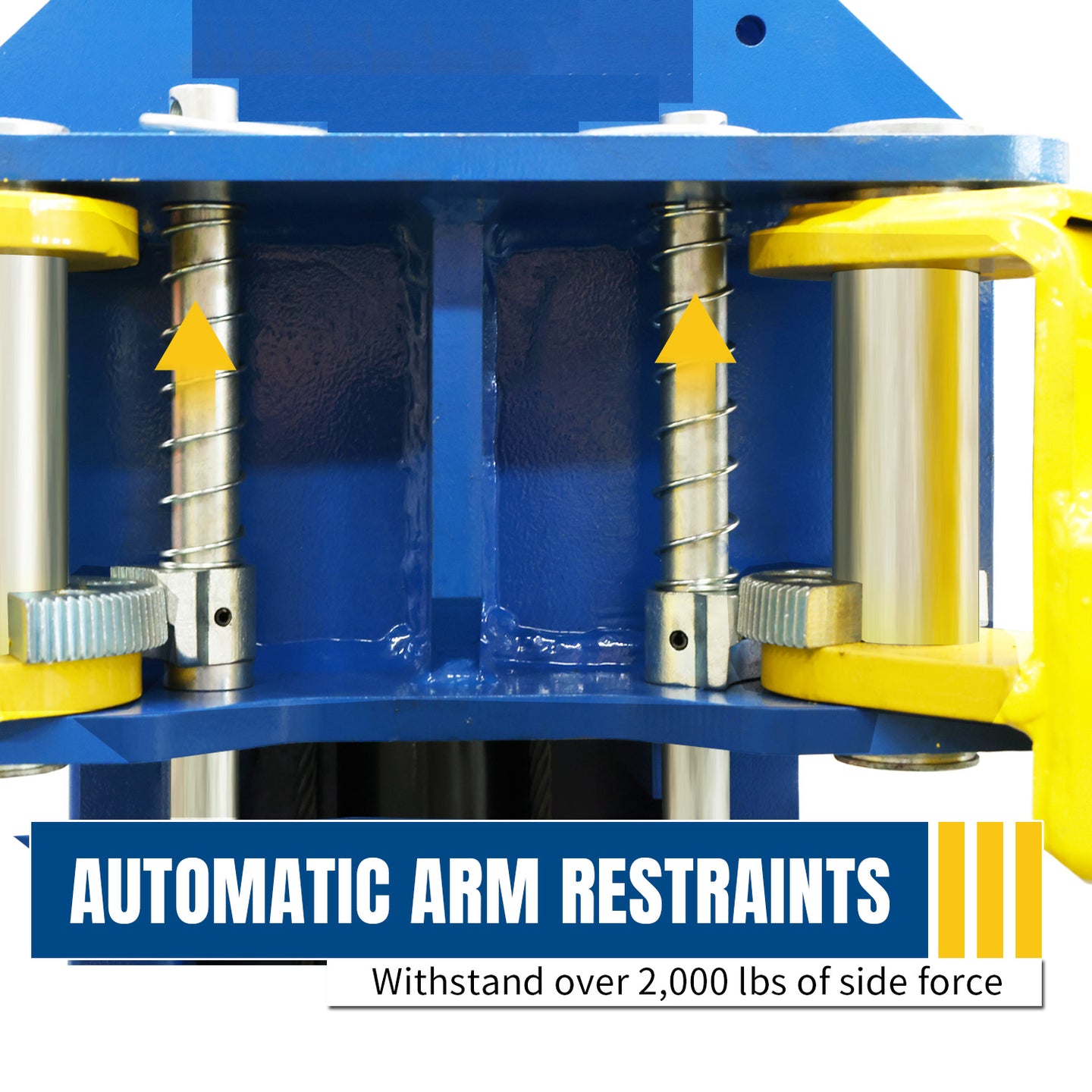

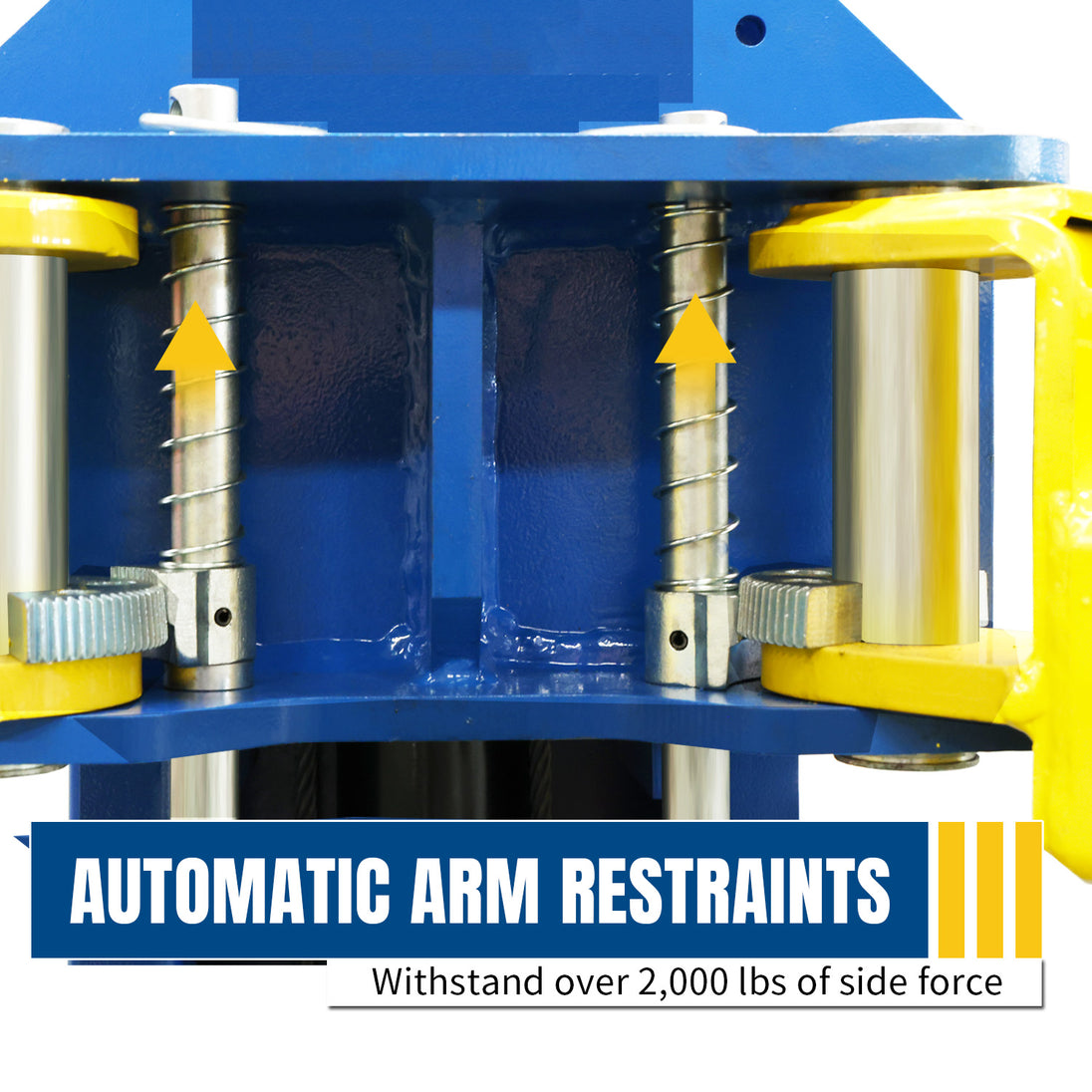

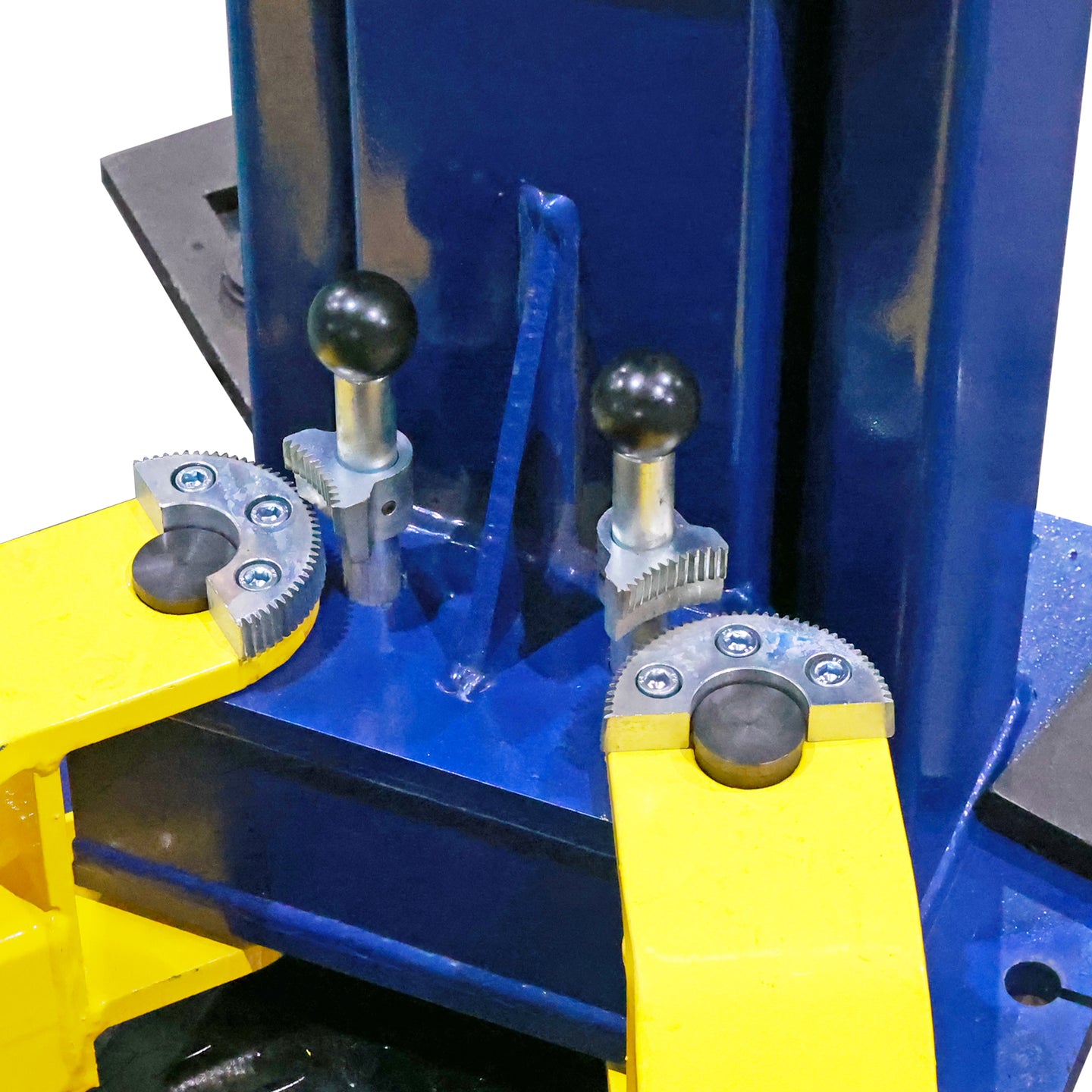

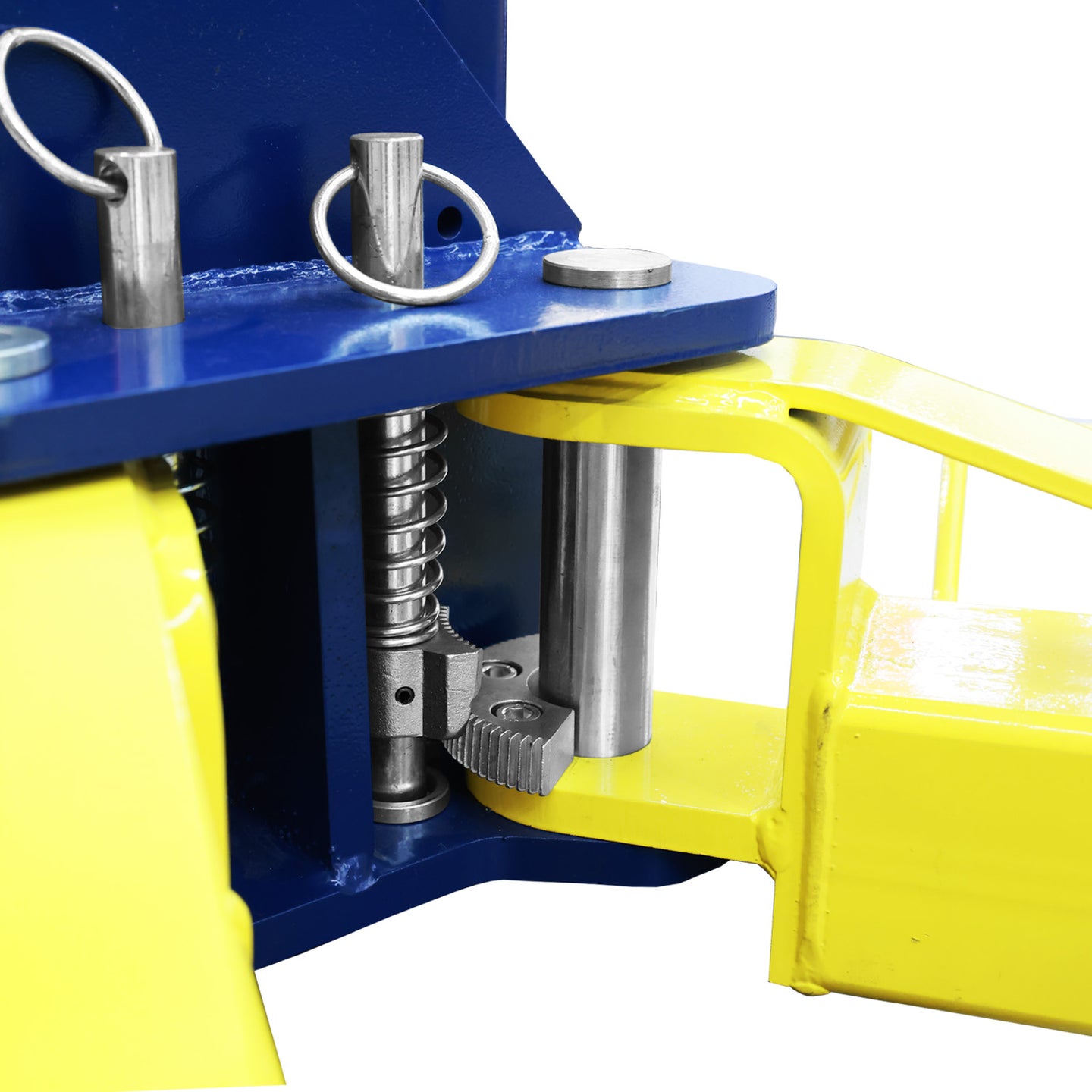

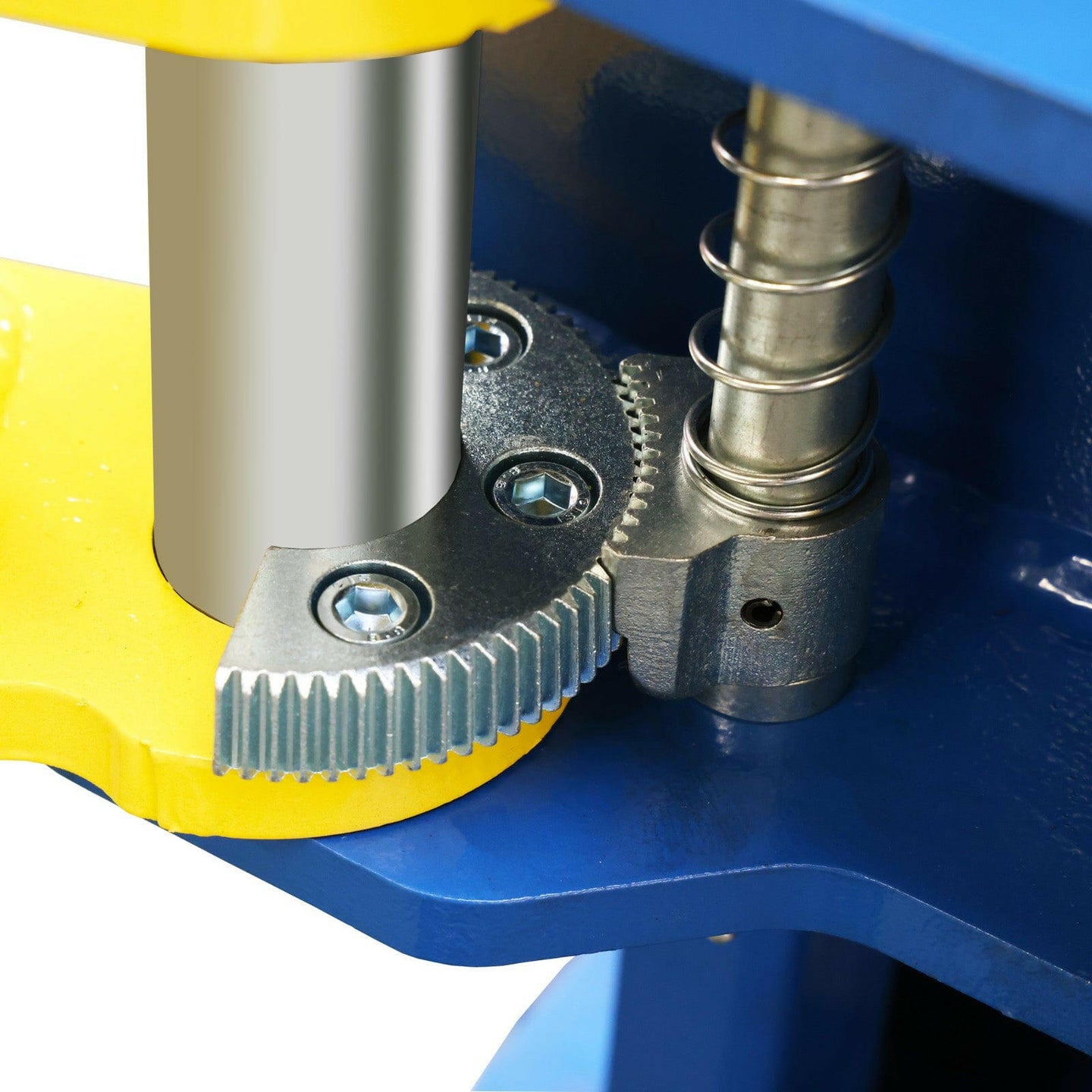

Automatic Arm Lock Restraints: Ensures safety during operation with automatic arm lock restraints.

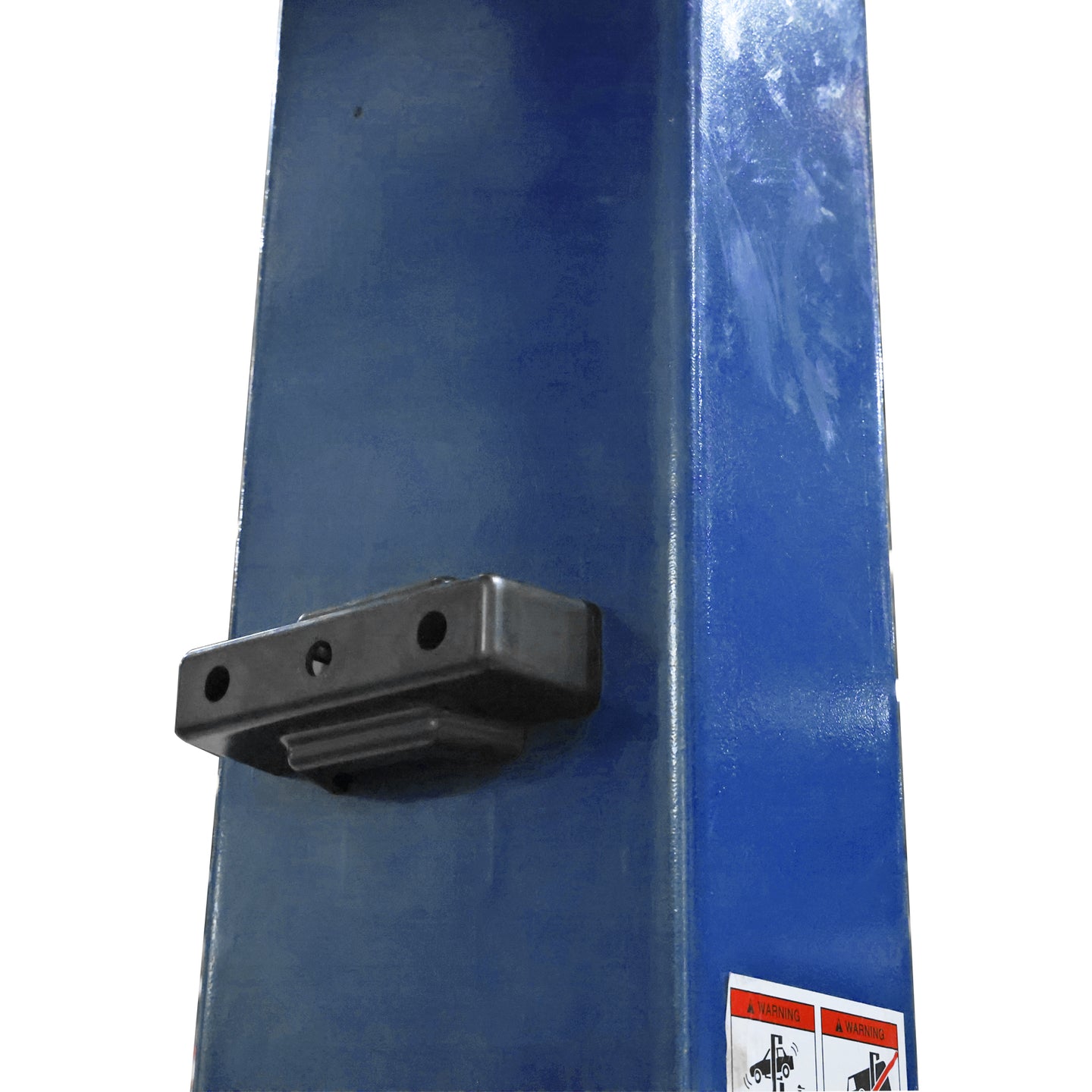

Door Guards Protection: Includes rubber protection for door guards.
Cylinder Stroke Protection: Features an up-limit switch to safeguard cylinder working stroke within a safe range.

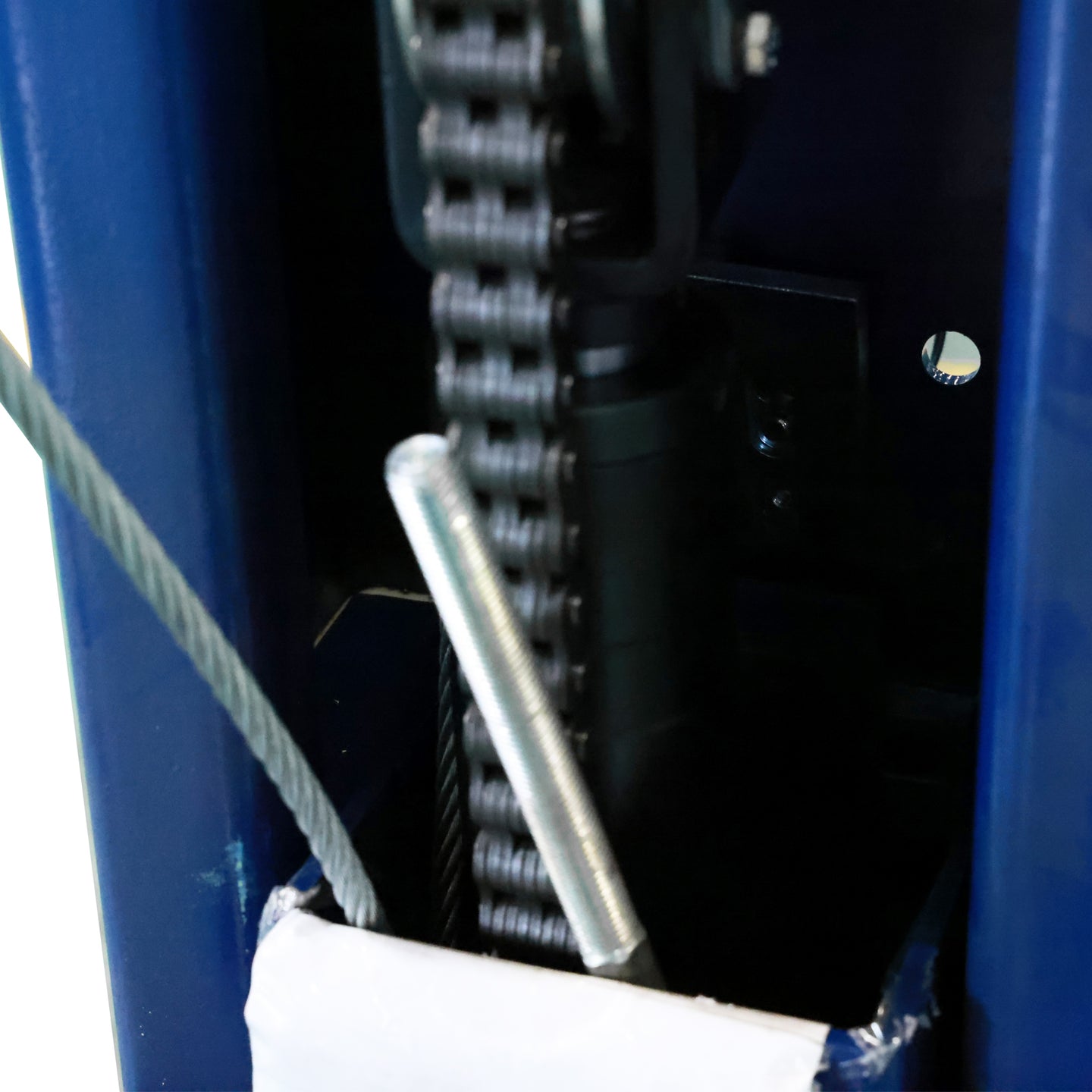

Heavy-Duty Cable and Pulley: Utilizes a robust 3/8" diameter cable and 5" pulley to reduce stress during synchronization and extend cable life.

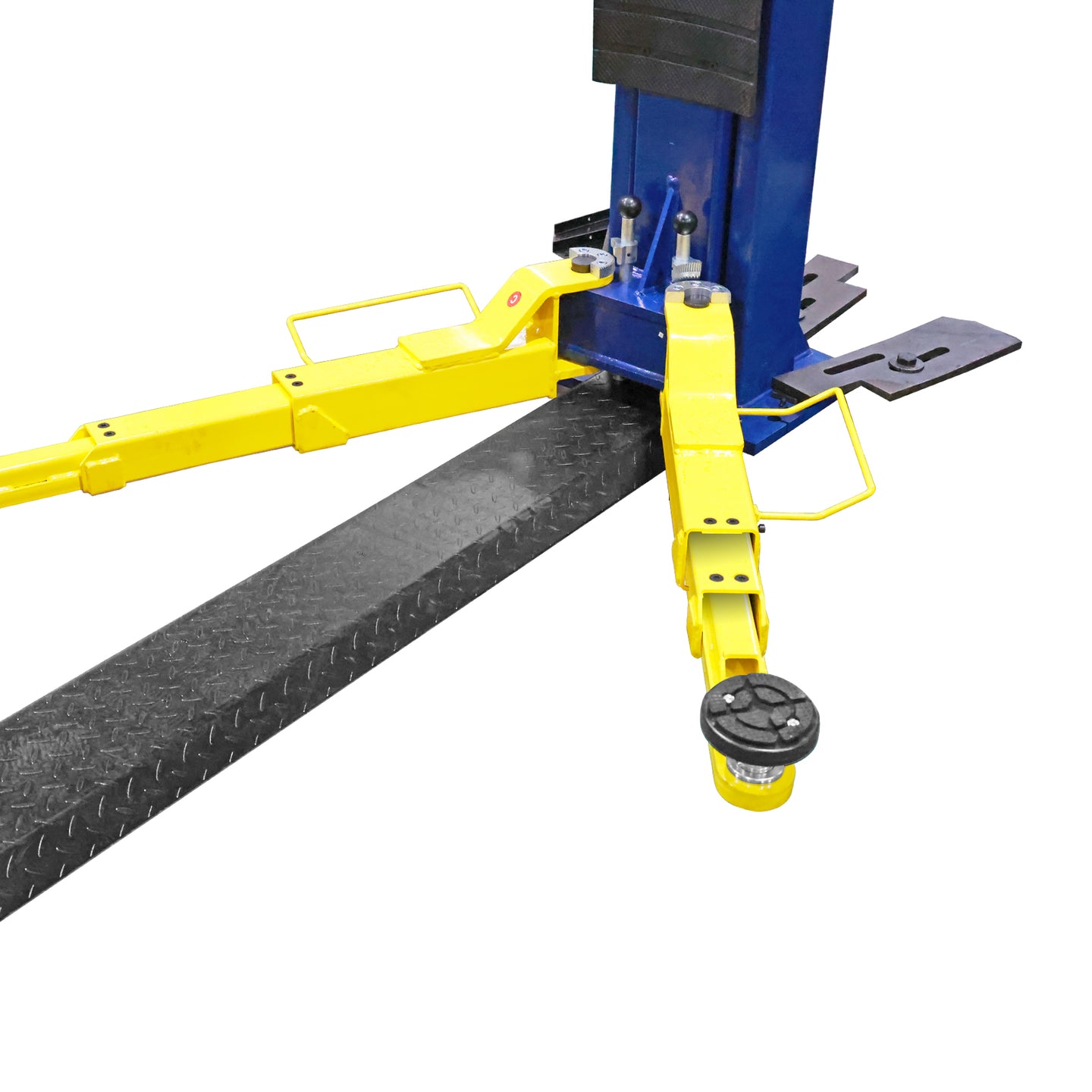

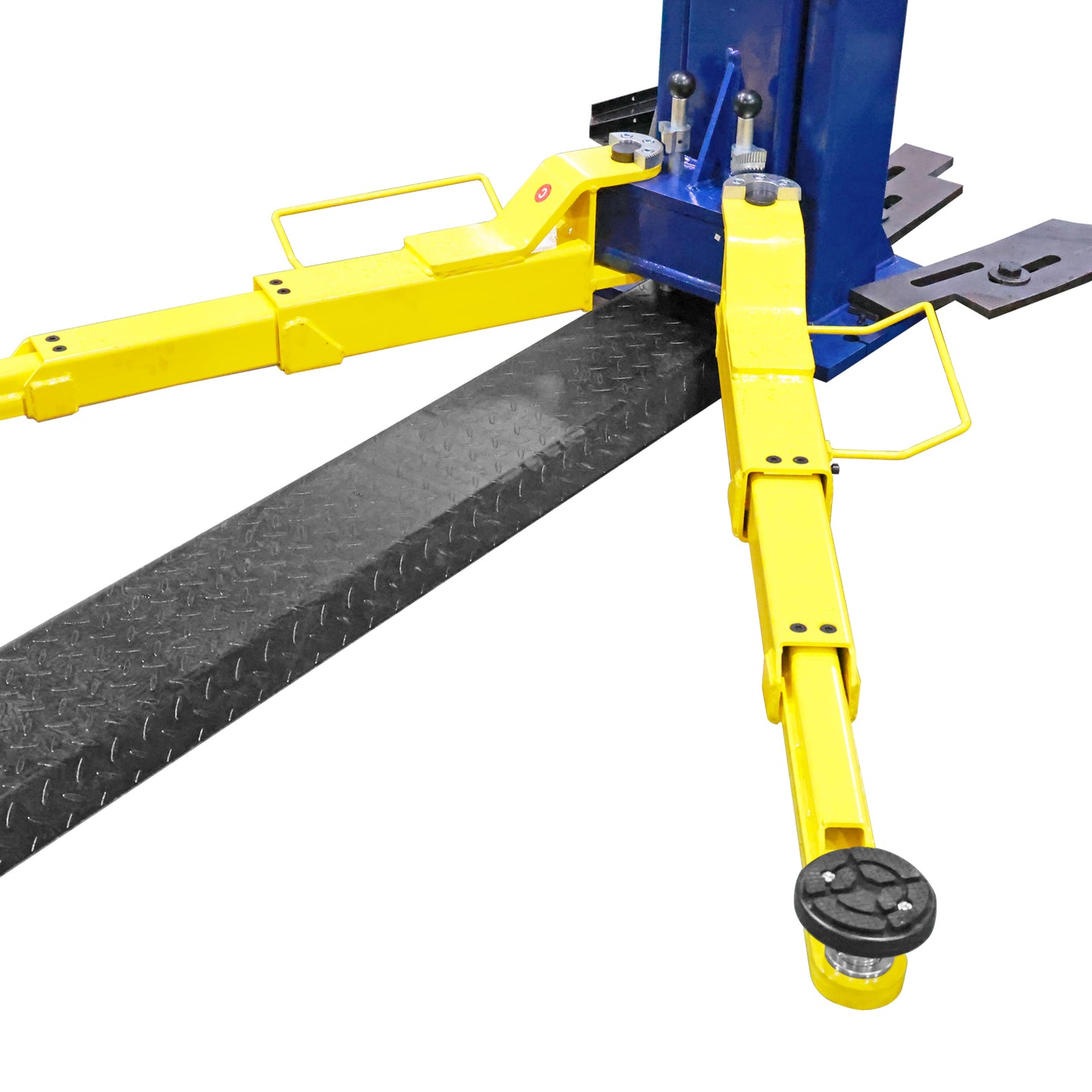

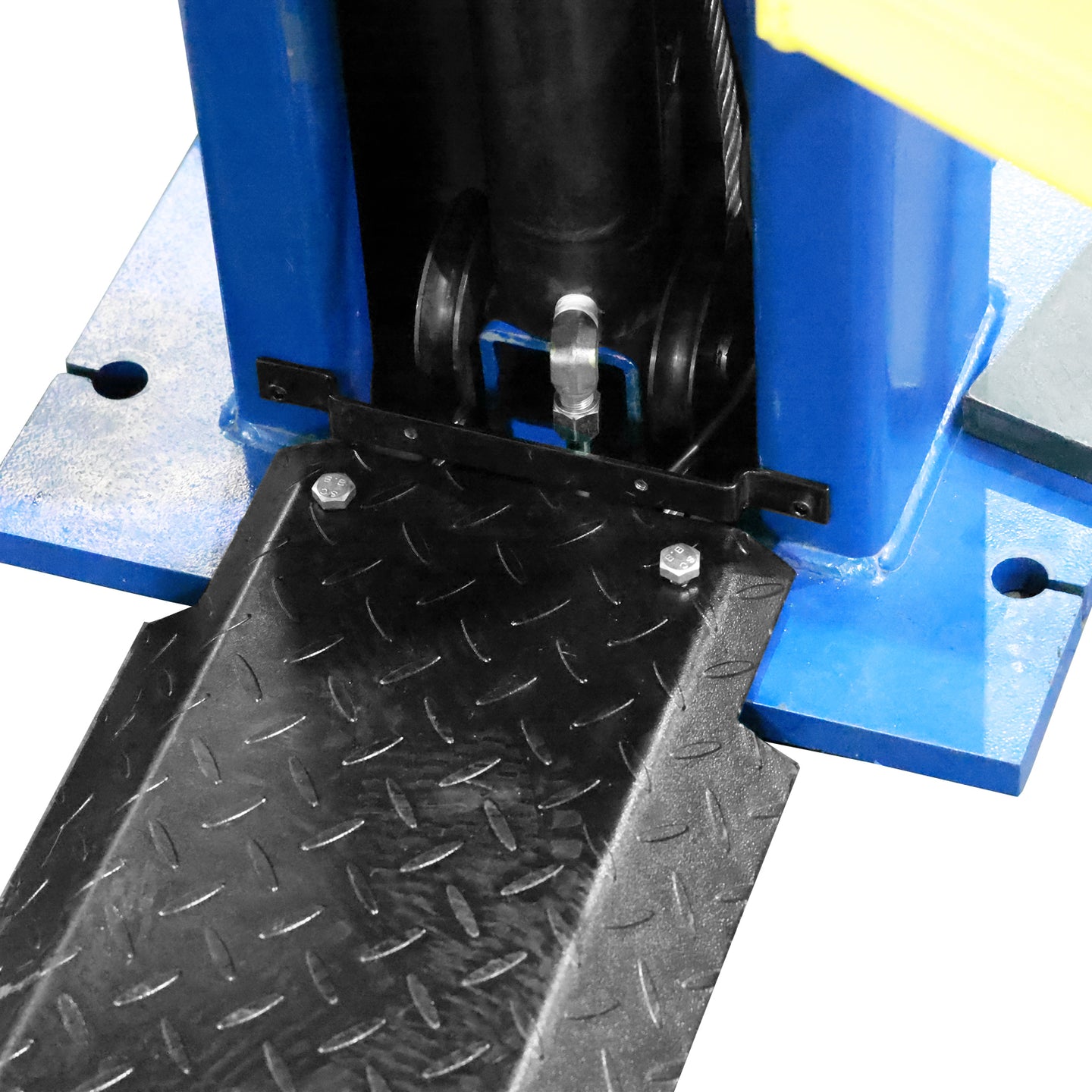

Upgraded Floor Plate: Enhanced with beveled diamond plate steel (5/32") and a supporting bracket.
Self-Lubricating Nylon Slider: Utilizes ultra-high molecular self-lubricating nylon sliders for smooth carriage movement.

SPECIFICATION：

Lifting Capacity	10000lbs.(4.5 Ton)
Max. Lifting Height	76.77"/1950mm
Min. Height	4.25"/110mm
Height Overall	150.79"/3830mm
Width Overall	134.65"/3420mm

Warranty and return

Sale, Payment, and Delivery

The buyer has the right to inspect the products at the time an place of delivery. The buyer should notice us for any shortages and damages within 30 days after such delivery.

Delivery will be on paved road only.

Torin is not liable to any incidental or consequential damages such as lost profits.

All order cancellations must be approved by Torin and may be subject to restocking fees and other charges.

Warranty Parts and Technical Issues

Customer satisfaction is most important to us. If you need any parts or have any technical issues that are not listed here, the best way is to email (torinbigredusa@gmail.com) text us with some pictures and the nameplate. Our technician will follow up with you as soon as possible.

For car lifts, the nameplate is usually on one of the posts with serial number on it..

For a 2-post car lift that is bolted to the ground, the warranty is voided if relocated.

We ship replacement parts for free within the warranty time in lower 48 states. Please let us know if you have any problem with parts.

We ship parts with FedEx, UPS, and USPS. Sorry but we do not do overnight shipping.

Unauthorized Parts and Voiding of Warranty

IMPORTANT: If you obtain a replacement part without our prior written permission while a product is under warranty, we will not cover the cost of that part, and we reserve the right to void the product's entire warranty. Please ensure you always contact us first to initiate a valid warranty claim.

Return and Refund for Products (Over 150LB)

We accept returns within 30 days after you receive the products in lower 48 states.

If you want to return a product that is over 150LB, please put the product in the original package or on a pallet and send us a photo for the package. We will send you a return freight label and schedule a pickup by a freight company. After we receive the returned product, we will process the refund.

For defective products deemed irreparable, we offer a full refund upon return.

For unwanted or mistakenly purchased items in new, unopened condition, a 10% restocking fee and return shipping charges apply. Additional fees may apply for items that are opened or installed.

Upon receiving and inspecting your returned product, we will notify you of the refund approval or rejection.

The refund may take at least two business days to be processed by the bank. If you did not receive the refund after about a week, please reply the email we sent to you or contact us at torinbigredusa@gmail.com.

We do not accept returns from customers who are not in the lower 48 states.

Return and Refund for Parts (below 150LB)

For unwanted or mistakenly purchased, or undeliverable items, we will accept returns within 30 days if the items are brand new and you are located in lower 48 states. A minimum 25% restocking fee and return shipping charges apply. Electronic and hydraulic parts are non-returnable.

Upon receiving and inspecting your returned parts, we will notify you of the refund approval or rejection.

All claims for lost or damaged shipments must be made within 60 days of the shipping date. We cannot accept responsibility for claims made after this period.

All parts are covered by a one-year warranty. This warranty does not cover normal wear and tear.

We do not accept returns from customers who are not in the lower 48 states.

Feedback

If you are happy with our products, please leave us a positive feedback. We will leave a positive feedback for you in return once we receive your feedback.
We never stop improving our products. We appreciate if you have any suggestions for our products.
