Level Up Your Garage: The Ultimate Guide to 4-Post Car Lifts

If you’ve spent any time in the American car scene, you know the struggle: a two-car garage that somehow only fits one car and a mountain of spare parts. Or perhaps you're tired of doing "creeper acrobatics" every time you need to change your transmission fluid.

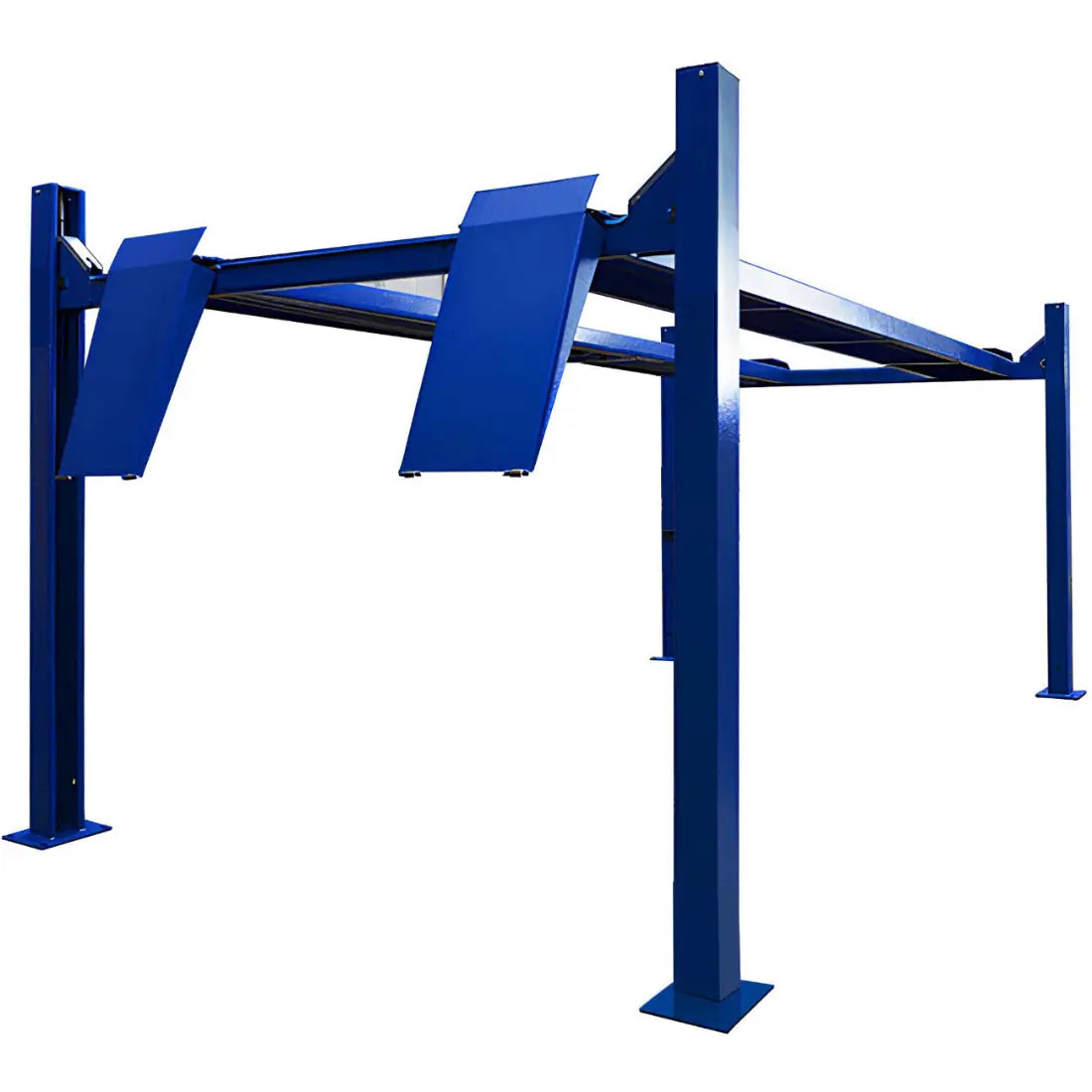

Enter the 4-Post Lift. It is the ultimate garage upgrade, turning a standard parking spot into a professional-grade workshop and a double-decker storage solution. But before you bolt one to the floor, here is what you need to know.

1. Who is a 4-Post Lift For?

Unlike 2-post lifts, which are common in commercial repair shops for wheel-off work, the 4-post lift is the king of the residential garage. It’s perfect for:

• The Collector: If you have a weekend cruiser and a daily driver but only one parking spot, a 4-post lift allows you to stack them safely.

• The DIY Mechanic: It provides a stable, drive-on platform for oil changes, exhaust work, and inspections.

• The "Safety-First" Homeowner: Because the weight is distributed across four columns, it is inherently more stable and doesn't always require the specialized concrete thickness that a 2-post lift demands.

2. Setting the Stage: Environment Requirements

You can’t just put a lift anywhere. You need to "measure twice, lift once."

• Ceiling Height: This is the deal-breaker. You need enough height for the combined tallness of both vehicles plus about 6-8 inches for the lift structure and locking mechanism. Usually, a 10 to 12-foot ceiling is the sweet spot.

• The Floor: While 4-post lifts are more forgiving than 2-post models, you still need a level, solid concrete slab (usually 4 inches thick, 3000 PSI) to ensure the posts stay plumb.

• Power: Most home lifts run on standard 110V or 220V power. Ensure your garage circuit can handle the amperage of a heavy-duty hydraulic motor.

3. The Professional Standard: TCE 4-Post Series

When comparing lifts, the TCE Professional Series 4-Post Lift stands out because it bridges the gap between "hobbyist" and "industrial."

Most entry-level lifts use thinner steel and manual lock releases that can be finicky. The TCE models feature heavy-duty aircraft-quality cables and a robust hydraulic system designed for thousands of cycles. One major differentiator is the multi-position safety lock system. While some lifts only lock every 6 inches, TCE offers more granular locking points, allowing you to stop at the perfect height for your specific ceiling or torso. Plus, with a 7,000 to 9,000-lb capacity, it handles everything from a classic Miata to a modern F-150 with zero "sway."

4. Troubleshooting 101: Keeping It Moving

Even the best machinery needs a little TLC. Here are the common "calls for help" from a 4-post lift:

The "Out of Sync" Platform

If one corner of the lift is rising slower than the others, your cables might be stretched or unevenly tensioned.

• The Fix: Check the adjustment nuts at the top of each column. Use a level to ensure the runways are perfectly horizontal and adjust the cable tension accordingly.

The "Jerky" Descent

If the lift shudders while coming down, it’s usually a sign of dry "sliders" or air in the cylinder.

• The Fix: Apply a high-quality lithium grease to the inside of the columns where the lift blocks slide. If that doesn't work, bleed the hydraulic system just like you would with a floor jack.

Locks Won't Disengage

You raise the lift to clear the locks, pull the release, but one corner stays stuck.

• The Fix: This is often a linkage issue. Check the rods or air lines (if equipped with pneumatic locks) connecting the release handle to the safety pawls. A quick lubrication of the pivot points usually solves it.

Final Thoughts

A 4-post lift isn't just a tool; it's a lifestyle change for a gearhead. It saves your back, saves your space, and honestly, it just looks cool. If you’re tired of working on your back and ready to treat your cars like the art pieces they are, a unit like the TCE 4-Post is the foundation of a dream garage.
